Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy | Surface: | Anodized |
|---|---|---|---|
| Color: | Natural | Temper: | 6063-T5 |
| Deep Process: | Cutting ,Drilling ,Milling | Packing: | Pallet / Wooden Case |
| Highlight: | aluminum extrusion profiles,aluminium extruded profiles |
||

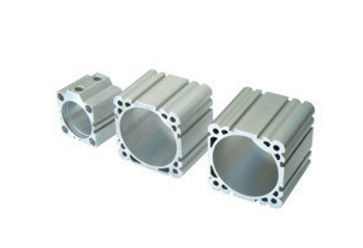

Silvery Anodized Industrial Aluminium Profile / Cylinder Shell with ISO9001: 2008Certified
Description:
DETAIL FEATURES:
--1--. Quality material: 6063 (6061, 6060, 6005, 6082 available)
--2--. Machining: CNC machining (Lathe/ Mill / Polish / Punch / Drill / Tap / Bend/ Weld are available. )
--3--. Finishing: Silver anodizing (Hard anodized / Powder coating / Painting / Silkscreening, Mill, etc. )
--4--. Shape: Square (Round, Retangular, Hexagonal, Ovel, Angle, Flat, etc. )
--5--. OEM design/specifications are welcome
Quotation is usually based on:
1) Detail drawings;
2) Buyers' samples;
3) Specification, pictures of the products.
| Item | Original product |
| Extrusion Tolerance | GB /T5237-2000 (Chinese Standard) |
| Machining Tolerance | GB/T1804-92 |
Standard for Anodizing |
GB5237.2-2004 |
| Manufacturing process | Die designing→ Die making→ Smelting& alloying→ Extruding→ Cutting→ CNC machining→ Driling→ Tapping→ Surface treatment→ Welding→ Assembling→ Packing |
| Packing method | 1. Standard packing: Each profile is seperated wrapped in plastic sheet in order to protect the profiles' surfaces, kraft paper wrapped in bundles. 2. Special packing: wooden cases+iron trays. 3. Bundles or boxes with wooden bars 4. EPE+carton boxes. 5. Customized packing methods are welcomed 6. 13 tons to a 20 feet container, 20 tons to a 40 feet container |
Applications:
--1--. QUALITY GUARANTEED: One-stop service, tool design, smelting, extruding, machining, surface treatment, packing as well as assembling can be all finished in house.
--2--. RELIABLE QUALITY: Our company is ISO9001: 2008 certified
--3--. High Efficiency: Most competitive price with short lead time for tooling design and the parts
--4--. Efficient COMMUNICATION (48-hour quotes price/lead time/MOQ)
--5--. Compliant test with RoHS
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
2.Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
