Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Porifle | Temper: | T5 T6 |
|---|---|---|---|
| Surface: | Anodizing | Color: | Customized |
| Logo: | Printing / Punching | Usage: | Industrial |
| Highlight: | aluminium door frame,aluminium extruded profiles |
||

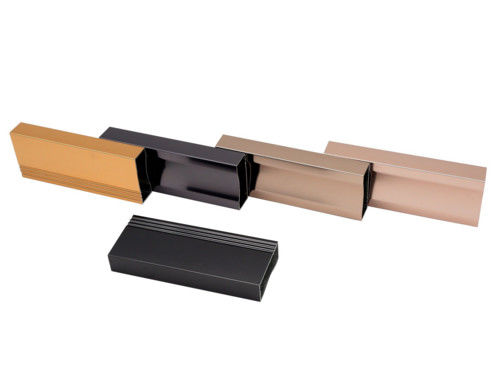

Powder Painting Extrude Industrial Aluminium Profiles , With Finihed Machining
1.Alloy :6063,6061,6005 or according to customer’ s choice
2.Material:Aluminum
3.Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4.Deep process: Milling, Drilling, Bending,Cutting.
Description:
| Product Description | |
| Item | Powder Painting Extrude Industrial Aluminium Profiles , With Finihed Machining |
| Material | 6063/6060/6005/6061 |
| Temper | T4-T8 |
| Size/Thickness | General aluminum profiles thickness from 0.8-4.0mm, length from 3m-6.4m or customized availble; Anodize protection Thickness from 8-18um, powder coating from 40-100um. |
| Shape | Customized, rectangual, round, square |
| Application | Windows and doors and so on |
| Suface treatment | Powdering coating |
| Colors | Anodize, powdering coating and customized availble |
| MOQ | 500 kgs for each item |
| Packing Details | Packing with plastic protective film inside; Plastic film or craft paper outside |
| Delivery time | Developing and sample testing: 15-17 days; 2. Production completed: 25-30days after sample is comfirmed by customers |
| FOB Port | Shanghai |
| Payment | T/T, L/C |
| Settlement term | FINAL ACTUAL WEIGHT OR THEORY WEIGHT |
| Cetificate and Standard | SGS |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
2.Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
