Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Anodizing / Powder Painting |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T5, T6 |
| Highlight: | modular aluminium profile system,aluminium extrusion frame system |
||

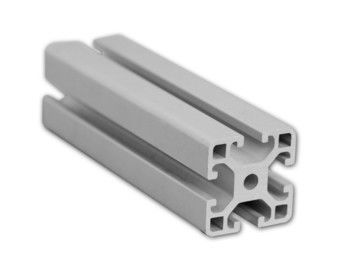

Anodized Aluminum Assembly Line/Connector /Aluminum T-Slot Bracket Assembly Line
(1).Suitable for industry,architecture,transportation and so on.
(2).20 years warranty.
(3).High corrosion resistance.
(4).5-10 years weather resistance.
(5).Good wear resistance & anti-scratch.
(6).Size customized.
| Aolly | 6063 | 6061 | 6060 | 6005 | 6082 | ||
| Temper | T4 | T5 | T6 | ||||
| Standard | DIN | AAMA | AS | CHINAGB | |||
| Certification | ISO9001: 2008 | ||||||
| Surface Finish | Mill finish | Anodizing | Powder Coating | Wood Grain | Electrophoresis | Polished | Brushed |
| Color | Anodizing | Silver, bronze, champagne, titanium, nickel, golden yellow, etc. | |||||
| Anodizing thickness is up to 25um | |||||||
| Powder Coating | White, black, bronze, grey, green, etc | ||||||
| Powder coating thickness is more than 60um | |||||||
| Electrophoresis | Silver, nickel, golden yellow, black, champagne, etc | ||||||
| Polishing | Silver, nickel, golden yellow, black, etc | ||||||
| Brushing | Silver, nickel, golden yellow, black, bronze, etc | ||||||
| Machining | Cutting, punching, drilling, bending, weld, mill, CNC, etc. | ||||||
| OEM customized aluminium profiles are available. | |||||||
Applications:
Mainly used for industrial production , such as automation equipment , enclosure of the skeleton and the companies according to their own customized mold machinery and equipment , such as assembly line conveyor , hoist, dispenser, testing equipment, shelves , etc., electronic machinery industries and clean room with a gain majority.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
