Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fan Blade Profile | Color: | Silvery |
|---|---|---|---|
| Temper: | T5 T6 | Surface: | Anodizing |
| Material: | Aluminum | Machining: | 1. Milling; 2. Drilling; 3. Bending; 4. Cutting |
| Highlight: | exhaust fan blades,palm frond fan blades |
||

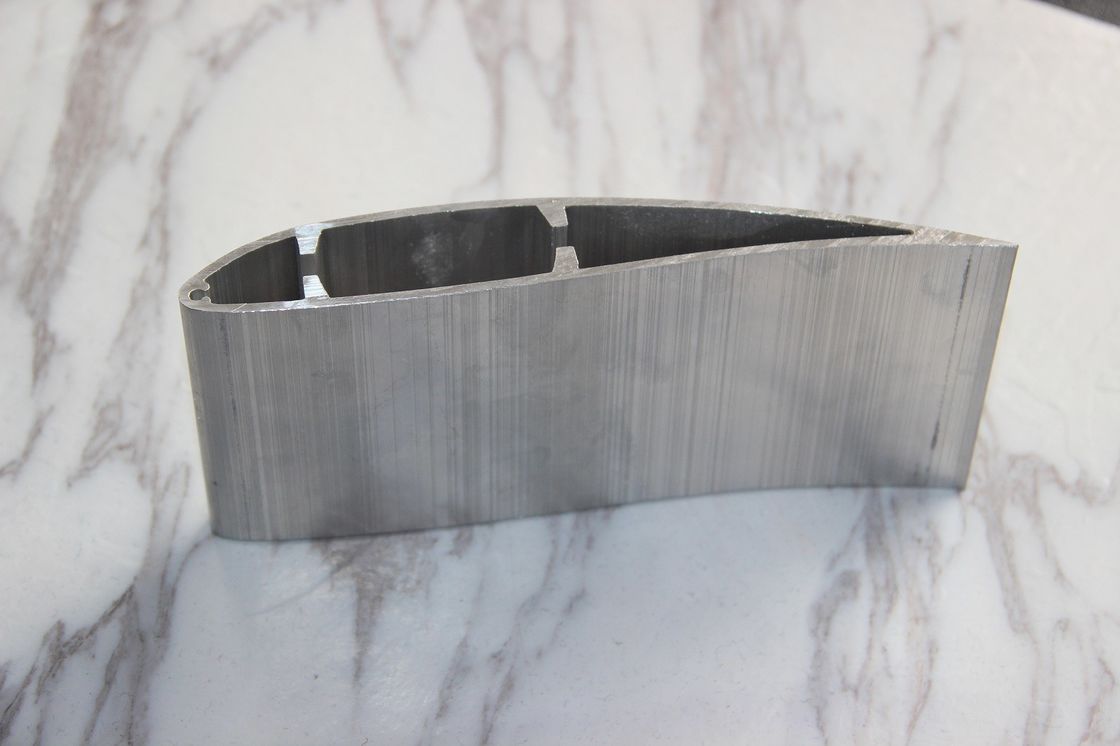

Powder Painted Industrial Fan Blade Aluminum Extrusion Profile For HVLS
Descrition:
Hentec Industry Co., Ltd is the vendor of BOSCH, SHARP , professional at aluminum extrusion profiles, both semi and final products, such as Aluminum fan blade , LED aluminum bracket, aluminum door, aluminum window, aluminum guide rail, aluminum fencing and all kinds of industrial and building aluminum profile, square, round, flat, oval, angle, irregular and all types according to the customers' drawing.
Hentec can design and manufacture custom industrial aluminum extrusion fan balde profile according to your specific performance or design requirements , with our expertise and experience in fan blade profile design, tooling, prototypes, testing, balancing and large scale production.
Alloy: |
6063 | 6061 | 6060 | 6005 | 6082 | ||
| Temper : | T5 | T6 | T4 | ||||
| Standard: | DIN | AAMA | AS | CHINAGB | |||
| Certification: | ISO9001: 2008. | ||||||
| Surface Finish: | Mill finish | Anodizing | Powder Coating | Wood Grain | Electrophoresis | Polished | Brushed |
| Color: | Anodizing: | Silver, bronze, champagne, titanium, nickel, golden yellow, etc. | |||||
| Anodizing thickness is up to 25um. | |||||||
| Powder Coating: | White, black, bronze, grey, green, etc . | ||||||
| Powder coating thickness is more than 60um. | |||||||
| Electrophoresis: | Silver, nickel, golden yellow, black, champagne, etc | ||||||
| Polishing | Silver, nickel, golden yellow, black, etc | ||||||
| Brushing: | Silver, nickel, golden yellow, black, bronze, etc | ||||||
| Machining: | Cutting, punching, drilling, bending, weld, mill, CNC, etc. | ||||||
| OEM customized aluminium profiles are available. | |||||||
Alloy |
Si |
Mg |
Fe |
Cu |
Mn |
Zn |
Cr |
Ti |
Impurity |
Al |
|
Unit |
Total |
||||||||||
6063 |
0.2-0.6 |
0.45-0.9 |
< 0.35 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.05 |
< 0.15 |
Surplus |
6061 |
0.4-0.8 |
0.8-1.2 |
< 0.7 |
0.15-0.4 |
< 0.15 |
< 0.25 |
0.04-0.35 |
< 0.15 |
< 0.05 |
< 0.15 |
Surplus |
6060 |
0.3-0.6 |
0.35-0.6 |
0.1-0.3 |
≤0.1 |
≤0.1 |
≤0.15 |
≤0.05 |
< 0.1 |
< 0.05 |
< 0.15 |
Surplus |
ADODIZINMG QUALITY |
||||
Grade |
corrosion resistance |
abrasive resistance |
||
CASS test |
alkaline dropping test |
sandtrial Abrasion coefficient f,g/um |
||
hours |
grade |
|||
AA10 |
16 |
≥ 9 |
≥ 50 |
≥ 300 |
AA15 |
32 |
≥ 9 |
≥ 75 |
≥ 300 |
AA20 |
56 |
≥ 9 |
≥ 100 |
≥ 300 |
AA25 |
72 |
≥ 9 |
≥ 125 |
≥ 300 |
| POWDER COATING QUALITY | ||||||||
| Gloss values | Thickness(um) | color variation | indentation resistance | adhesion | impact resistance | cupping test | presentation quality | |
| Max Thickness | Min Thickness | |||||||
| 60 | ≤ 120 | ≥ 40 | Color should be consistent with the sample color | ≥ 80 | 0 | No cracking and shedding phenomenon after the front impact test,small fine lines around the concave is allowed | No cracking and shedding phenomenon after the cupping test ( 6mm indentation depth ) | |
Competitive Advantage:
1.Reliable quality is certified by ISO9001:2008 and RoHS compliant
2.Competitive prices with short lead-time for both tooling and parts
3.Effective and strong technical support by over 45 engineers
4.Excellent sales services: Best attention to even the smallest detail
5.Sufficient production capacity
6.Efficient communication (24-hour quote lead time)
7.Strict Quality Control with Advanced Test & Inspection Equipments ( Such as, CMM, RoHS tester, Salt-spray tester, etc.)
