Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Temper: | T5 |
|---|---|---|---|
| Alloy: | 6063 / 6061 / 6060 | Surface: | Powder Painted |
| Color: | Customerized | Application: | Window&Door |
| Highlight: | aluminum extrusion profiles,extruded aluminium profiles |
||

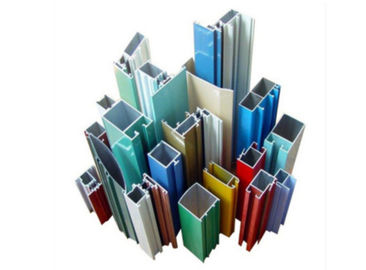

Anodizing Deep - Processing Aluminium Window Profiles For Silding / Casement Window
Hentec aluminum alloy construction profiles are widely applied to curtain wall frameworks, high-grade doors and windows systems, decoration, electronics, electric appliances, machinery, automobiles, medical devices and communication equipment.
Descrition:Anodizing Aluminium Window Extrusion Profiles With Deep - Processing For Silding /Casement Window
| 1. Material | Aluminium alloy; 6063, 6061, 6082, 6005, T5, T6, |
| 2. Section Shapes | I, U, T, C, Z, L, H, square, round, flat, hollow, t-slot and other complicated shapes by custom design. |
| 3. Surface treating | Mill/Anodized(oxidation)/Sand blast/Powder coating/Electrophoresis |
| 4. Application | 1) - for Window and door frames |
| 3) - for Building curtain glass walls | |
| 4) - for Solar panel frames, Solar mounting / roofing brackets | |
| 5) - for Industry assembly lines equipment. | |
| 6) - for Heatsinks | |
| 7) - for LED lighting | |
| 8)- other by custom design size and dimension | |
| 5. Production lines | 1) 5 melting and casting production lines |
| 2) 25 extruding production lines(from 500tons to 3000tons and meet different customer's demands) | |
| 3) 6 anodizing and electrophresis production lines | |
| 4) 4 powder coating production lines | |
| 5) 44 extrusion lines | |
| 6) 4 heat insulation broken bridge production lines | |
| 7) 2 wiredrawing and polishing production lines | |
| 6. Characteristic Services | 1). OEM Service. |
| 2). Design according to the customers' requirements. | |
| 3). More years' professional experience in research, manufacturing | |
| 4). Our modern deep processing center can provide machining such as Cutting, punching, drilling, etc. | |
| 7. Quality Control | We operate the most strict quality control system, the detection is from the material, production process, |
| To final product, and ensure the product quality and traceability. | |
| 8. Process | Die design→Die making→Smelting&alloying→QC→Extruding→Cutting→Heat Treatment→ |
| QC→Surface treatment→QC→Welding→Packing→QC→Shipping→After Sale Service | |
| 9. Standard | GB5237-2008 equal to EN12020-1.2(2001) |
| 10. Payment | T/T: 30% for deposit |
| 11. Packaging Detail: | Inside: Packed with plastic film to protect each piece |
| Outside: Wrap to be bundles by waterproof craft paper or EPE film. Customized request available | |

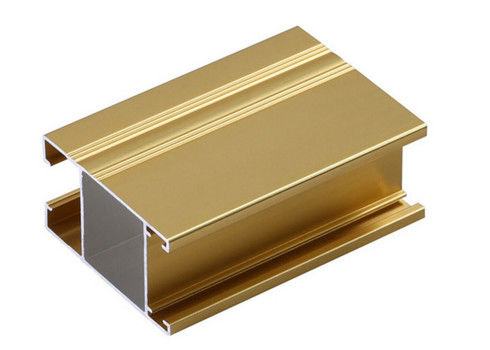

Power Coating aluminum profile windows and door
Applications:
Aluminum profile used for making aluminum door .There are many colors can be selected for surface treatment .The strength can be increased by higher wall thickness . It is possible to produce according to customized design .
Specifications:
1. Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1. Top Aluminium profile manufacturer for more than 10 years in China.
2. Diverse Products used in the fields of construction, industry and deep-processing.
3. Quality Control is put in the core position of our production.
4. Customized Production shows our capability in product design and process control.
5. Perfect Customer Services include careful packaging, quick delivery and good
after-sale service.
