Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |
| Highlight: | extruded aluminium profiles,aluminum extrusion profiles |
||

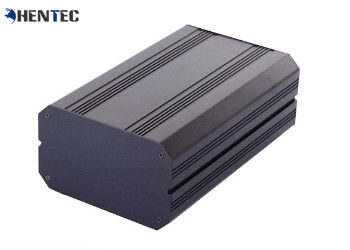

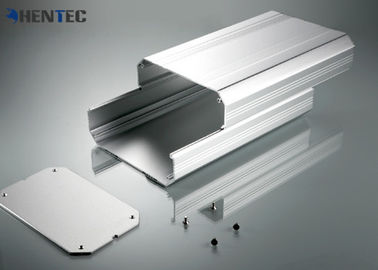

Electrical Cover / Enclosure Extruded Aluminum Profiles With CNC Machining , PCB Cover
1. Reliable quality (ISO9001:2008 certified).
2. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house.
3. Effective and strong technical support and excellent sales services.
4. Sufficient production capacity (only 65% occupied).
5. Efficient communication (48-hour quote lead time).
6. Compliant with RoHS Test.
Products discription:
| 1 | business type | Manufacturer |
| 2 | Standard: | GB 5237-2008; EN755,etc |
| 3 | Product series: | Aluminium profile for building material and industrial materail |
| 4 | Price: | Based on SMM Aluminium Ingot price(www.smm.cn) + processing Fee |
| 5 | Payment term: | T/T, L/C at sight |
| 6 | Surface treatment: | mill finish,Anodizing, Powder coating, electrophoresis, wooden finish,heat insulting |
specification:
| 7 | Alloy: | 6063, 6060, 6061, 6005 |
| 8 | state: | T4/ T5/T6 |
| 9 | length | 1m-7m, generally 5.85m for container |
| 10 | Normal Anodizing thickness: | AVERAGE >10 micro, |
| 11 | Normal powder coating thickness: | >60micro |
| 12 | thickness: | 0.6mm,0.8mm,1.0mm,1.2mm,1.4mm,2.0mm,3.0mm,etc |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
2. Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1.OEM and ODM are welcome
2.Strict inspection process
Contact Person: Mr. Chris Gong
Tel: +86-13861643436
Fax: 86-0510-86215836
