| Product Name: | Aluminum Solar Panel Frame | Alloy: | 6063 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Punching , Cutting | Temper: | T5, T6 ,T66 |
| Highlight: | anodized aluminum frame,solar panel aluminum frame |
||

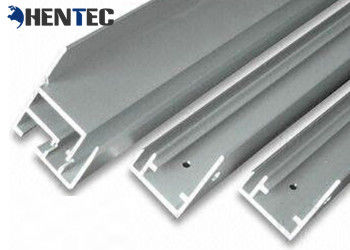

Silvery , Black Anodized Aluminum Solar Panel Frame With Screw Joint / Corner Key Joint
Hentec Industry Co.,Ltd is one of the largest manufacturers of extruded aluminum profiles in China. Since its establishment in 1997,the Company is dedicated to the design and manufacturing of advanced high precision extruded aluminum profiles.Through years of effort and perseverance, Hentec's product range has expanded from architectural doors,windows and curtain walls to various industrial profiles, with its products being used all over the world.
Description:
Aluminum Extrusion Solar Panel Frame
Aluminum solar frame is widely used as the frame of solar panel, and then it is also called as aluminum solar panel frame. Our aluminum solar frames adopt L connector or screw joint, resulting in well fixed structure with durability. They are of high quality and at low price.
Features:
1) 30*25 suitable for 30-120W solar modules
2) 35*35 suitable for 80-180W solar modules
3) 50*35 suitable for 160-220W solar modules
4) Many other custom made sizes available, such as: 45*35mm, 60*35mm, 46*40mm, 46*50mm, etc.
Specifications :
Product Details
| Item | Aluminum Frame Extrusion Profile for PV Solar Module |
| Material | Aluminium 6000 series alloy: such as 6063 6005 6061 |
| Temper | T5 T6 |
| length | 3-6 Meter per piece, or as your inquire |
| Shape | Round,square,flat,hollow,oval,triangle,U-profile,L-profile,T-profile,customized avaiable |
| Thickness | General profile Thickness: 0.7 - 5.0mm |
| Deep process | CNC ,drilling ,milling ,cutting ,bending ,tapping ,welding ,assembling ,punching |
| Frame Section Size | 30mm*35mm ,35mm*35mm ,35mm*40mm ,30mm*46mm ,35mm*45mm ,35mm*50mm etc |
Common Specification
| Maxpower(W) | Cells | Type | Size ( L * W * H ) |
| 140W | 156*156P/M | 4*9PCS | 1476*680*35MM |
| 150W | 156*156P/M | 4*9PCS | 1476*680*35MM |
| 180W | 156*156P/M | 6*8PCS | 1650*836*50MM |
| 195W | 125*125P/M | 8*10PCS | 1340*1050*40MM |
| 200W | 156*156P/M | 6*9PCS | 1476*992*45MM |
| 220W | 156*156P/M | 6*10PCS | 1650*992*50MM |
| 240W | 156*156P/M | 6*10PCS | 1650*992*50MM |
| 245W | 125*125P/M | 8*12PCS | 1600*1050*40MM |
| 250W | 125*125P/M | 8*12PCS | 1600*1050*40MM |
| 260W | 156*156P/M | 6*12PCS | 1956*992*50MM |
| 280W | 156*156P/M | 6*12PCS | 1956*992*50MM |
Solar Frame Type
(1) 90°-Angle : fix with screws
(2) 45° -Angle : fix with Corner
| Anodizing Quality | ||||
| Grade | Corrosion Resistance | Abrasive Resistance | ||
| CASS Test | Alkaline | Sandtrial Abrasion | ||
| Hours | Grade | Dropping | coefficientf,g/um | |
| AA10 | 16 | >=9 | >=50 | >=300 |
| AA15 | 32 | >=9 | >=75 | >=300 |
| AA20 | 56 | >=9 | >=100 | >=300 |
| AA25 | 72 | >=9 | >=125 | >=300 |
Applications:
Competitive Advantage:
In addition to high quality ,we at Hentec office offer customer complete service .Our aluminum solar frame comes with a 15 year warranty .Maintenance service is also available .
