Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profile | Alloy: | 6063,6061 |
|---|---|---|---|
| Material: | Aluminium | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T5, T6 |
| Highlight: | extruded aluminium profiles,aluminum extrusion profiles |
||

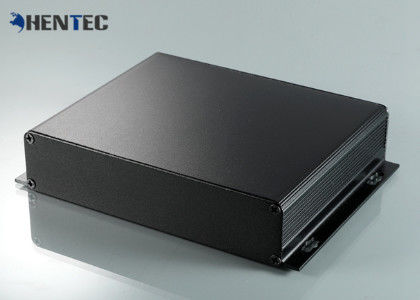

Aluminum Electrical Cover / Aluminum Extrusions For Electronics / Electrical
1. Reliable quality (ISO9001:2008 certified).
2. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house.
3. Effective and strong technical support and excellent sales services.
4. Sufficient production capacity (only 65% occupied).
5. Efficient communication (48-hour quote lead time).
6. Compliant with RoHS Test.
| Material | 6000 series Aluminium Alloy |
| Temper | T4, T5, T6 |
| Shape | Square, round, rectangular, special shape customized |
| Size / Thickness | Profiles thickness : 0.8 to 5.0mm Anodize film thickness : 8~15 um Powder coating thickness : 40 ~ 120 um Length : ≤6000mm / customized available |
| Deep process | CNC, machining, drilling, milling, cutting, punching, bending, assembling |
| Surface finishing | Sand blasting, Polished, Brushed Powder coating, Wood grain , Anodized etc. |
| Colors | Color sheet / Customized color available |
| Application | - For Heat sinks for car amplifier enclosure - For Heat sinks for LED lighting, high-power LED street lighting, stage lighting, LED tunnel lighting etc - For motor shell - For LED lighting/TV frame - For hook of LED stage lighting - For industry assembly lines equipment - For other OEM design size and dimension |
Warranty :
1. GB5237-2008 equal to EN12020-1.2(2001);
2. GB6892-2006 equal to DIN 1725
3. Within 15 years without color changing, all life without surface peeling off;
Moulding :
we open the new die within 10days
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
2. Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1) Engineering design and support.
2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
