Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Fan Blade | Logo: | |
|---|---|---|---|
| Temper: | T5, T6 ,T66 | Surface: | Silvery Anodized |
| Material: | Aluminum | Machining: | 1. Milling; 2. Drilling; 3. Bending; 4. Cutting ... |
| Highlight: | replacement fan blade,palm frond fan blades |
||

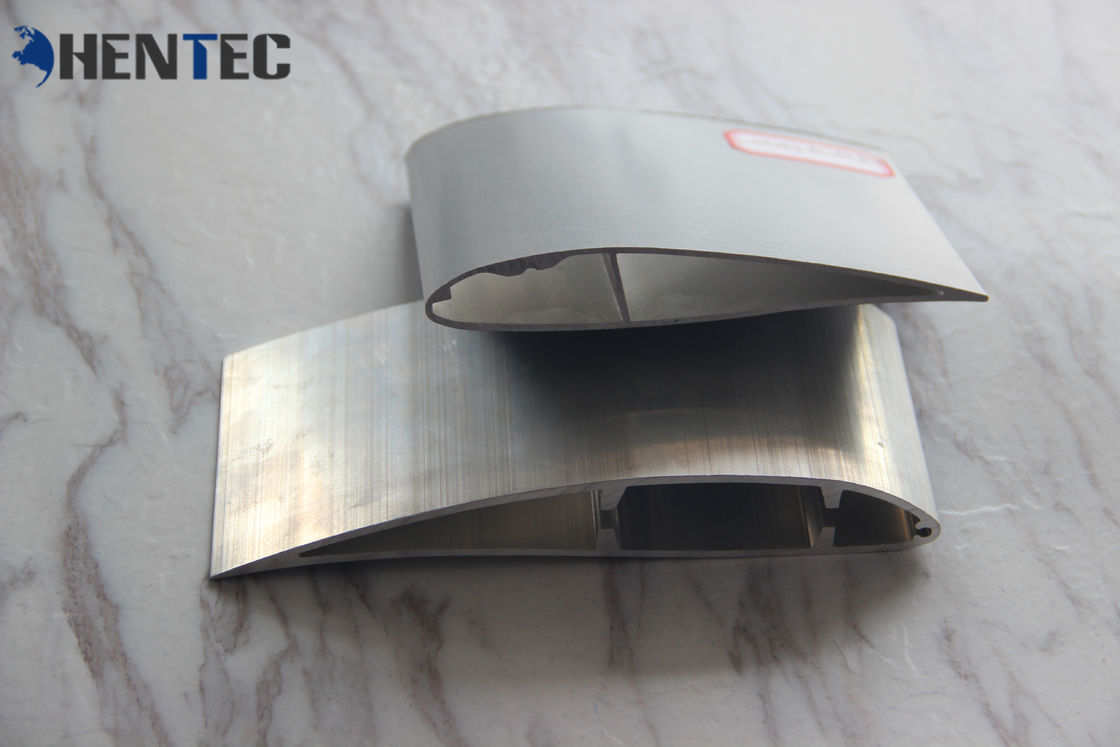

Replacement Industrial Fan Blade / Industrial Cooling Blade Aluminium Extruded Profiles
Our product have been exported to Europe,South Africa,Algeria, Angola, Chile, Egypt, Ethiopia, Libya, Nepal, Nigeria, Philippines, Thailand, Tanzania, South Africa, etc. There are ready moulds for aboved countries, and easy for clients to placed order. On the other hand, you can send us your sample or drawing, we will surely make exactly what you want after discussing with each other.
Our performance is better than the ordinary ones. Excellent metal colors and strong endurance, good performance in heat-resistance, radio resistance, anti-corrosion and anti-cyclone, etc. Since 1993, our factory focus on making quality aluminum profiles and considerate service for each client. We will be your another best choice in life and hope you will never stop enjoying the benefits.
| 1 | Item : | Industrial Cooling Blade |
| 2 | Standard: | National GB5237.1-2008 |
| 3 | Type: | Aluminium Alloy profile |
| 4 | Color: | Brown, Silver, White, Black, Gold, Champagne, Blue Or Customized |
| 5 | Shape: | Square, Round, Hollow, Oval, Triangle, U-profiles, L-profiles, T-profiles, H-profiles |
| 6 | Surface treatment: | Anodizing, Powder coating, Electrophoresis, Wooden finish, Polish etc. |
7 |
Specification: |
A. Alloy: 6063, 6060, 6061, 6005 |
| B. State: T4/T5/T6 | ||
| C. Length: 1m-7m | ||
| D. Profiles thickness: ≥ 0.8 mm | ||
| E. Anodizing thickness: 8-20 um | ||
| F. Powder coating thickness: 40-120 um | ||
| G. Tensile strength: ≥ 160 mpa | ||
| H. Yield strength: ≥ 110 mpa | ||
| I. Extensibility: ≥ 8% | ||
| J. Hardness(HW): ≥ 8 | ||
| 8 | MOQ: | 1 Metric Ton |
| 9 | Payment Terms: | 30% deposit in advance, 70% balance upon B/L copy |
Specifications:
1. Primary Technical Data
1) Chemical composition
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
3. Surface Treatment of Sections
|
|
(μm),not diminish than |
acid-resistant |
abrasion resistance |
|||
|
(Min-average film |
(Min-part film |
CASS |
(S) |
|
||
|
(h) |
Class |
(f, g /μm) |
||||
|
AA10 |
10 |
8 |
16 |
≥9 |
≥50 |
≥300 |
|
AA15 |
15 |
12 |
32 |
≥9 |
≥75 |
≥300 |
|
AA20 |
20 |
16 |
56 |
≥9 |
≥100 |
≥300 |
|
AA25 |
25 |
20 |
72 |
≥9 |
≥125 |
≥300 |
Competitive Advantage:
1)High efficient air flow
2)Strengthen the air cycle effectively
3)Low cost and free maintenance
4)Provide cool air flow in summer
5)Large application area
6)Propeller blades guarantee safety
