Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Surface: | Bright Anodize |
|---|---|---|---|
| Warranty: | 15years | Alloy: | 6063/6060/6005/6061 |
| Water Proof: | Water Proof | Logo: | Silk Screen |
| Highlight: | aluminum electrical enclosures,extruded aluminum housing |
||

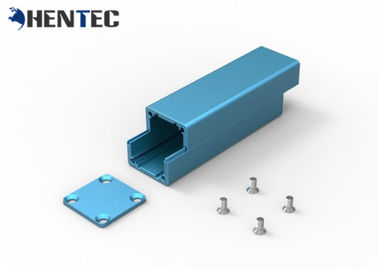

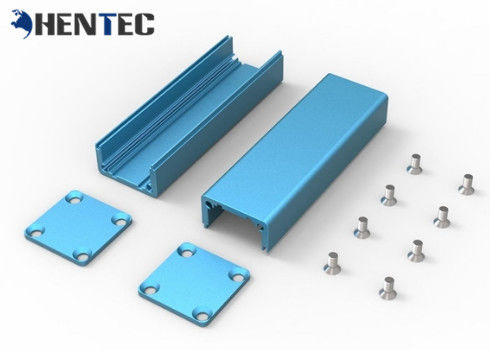

Bright Black Anodizing Aluminum Electrical Shell / 6063 / 6061 / 6005
Hentec Industry ,established in 2004 ,locates in Jiangyin China Aluminum Industrial City,over past 15 years, professional manufacturing of aluminum enclosure ,very good at customized design , cutout , finish treatment and silkscreen .
Advance:
| Our Advance |
| (1).Direct from factory |
| (2).Low(1-2%)scrap rate |
| (3).All kinds of metal&plastic material is available |
| (4). High Tolerance: +/- 0.02mm(Metal shaft), +/-0.03mm(plastic) |
| (5). 100% inspection(offer QC report) |
| (6). Sample is available |
| (7). Short lead time (5-20 days). |
| (8). One-stop customized service |
Description:
Product Details
| Item | Custom 6000 Series Anodised Aluminium Extrusion LED Profile |
| Material | Aluminium 6000 series alloy: such as 6063 6005 6061 |
| Temper | T4 T5 T6 |
| length | 3-6 Meter per piece, or as your inquire |
| Shape | Round,square,flat,hollow,oval,triangle,U-profile,L-profile,T-profile,customized avaiable |
| Thickness | General profile Thickness: 0.7 - 5.0mm |
| Deep process | CNC ,drilling ,milling ,cutting ,bending ,tapping ,welding ,assembling ,punching |
Surface treatment
| Surface treatment | Mill-finish,Anodized,Powder coated,Electropheresis,Wood grain,Brushed, Polishing |
| Anodized thickness | 8 - 25um |
| Anodized Color | Silver,black,chanpagne,bronze,gold or customized |
| Electropheresis Color | Silver,black,chanpagne,bronze,gold or customized |
| Powder coated Color | All color by RAL ,or customer's color sample |
| Powder coated thickness | 40 - 120um |
| Wood grain | customized |
| Guarantee | surface Brightly can be stable for 10 - 20years |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Our Service
Any inquiry will be replied in 2 hours
OEM and ODM are welcome
Strict inspection process
Suppliy certification of SGS and CE
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
