Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063,6061,6005,6082 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Anodized Powder Coated，Drawbench,Steel Polished |
| Deep Process: | Milling, Drilling, Cutting | Temper: | T5, T6 |
| Highlight: | aluminium door frame,aluminium extruded profiles |
||

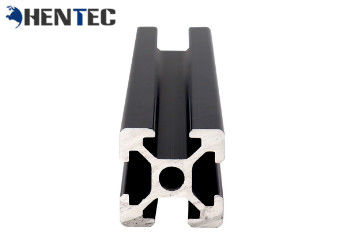

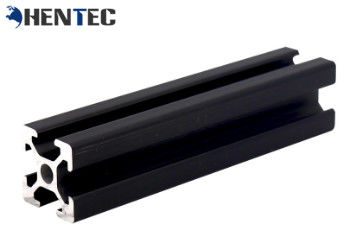

T - Slot Industrial Aluminum Extrusion Profile Black Anodized Suface Treatment
T-slot Industrial Aluminium profile are mainly producted by Alloy 6061-
T5/T6 or 6063-T5/T6, it is widely used for aluminium display and exhibition
shelf, aluminium coveyors system, work bench, machine frames and stairway
-platform-system, transportation, construction and so on.
| Product | T - Slot Industrial Aluminum Extrusion Profile Black Anodized Suface Treatment |
| Material | 6000series aluminium alloy |
| Temper | T3-T8 |
| Surface treatment | Mill finish,powder coating, anodizing, wooden grain coating,polishing,eletrophoresis,PVDF, sanding blasting, etc. |
| Size | 20series |
| Slot width | 6MM,8MM,10MM |
| Length | 6M |
| Unit weight | 0.53KG/M |
| Appearance | Normally square,round and T-shaped,or customized |
| Color | Silver,black,blue,wood color,according to clients' requirements. |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
