Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Profile System | Alloy: | 6063 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Fluorocarbon Powder Spray Coated /PVDF Paint, Drawbench,Steel Polished |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 |
| Highlight: | modular aluminium profile system,aluminium extrusion frame system |
||

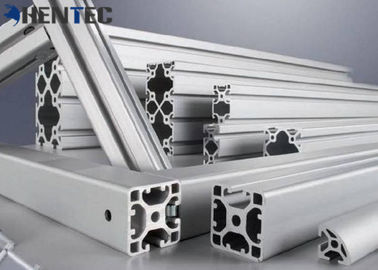

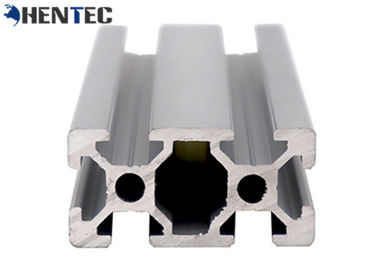

Size Customized Industrial Profile Systems Assembly Stage / Assembly Line
(1).Suitable for industry,architecture,transportation and so on.
(2).20 years warranty.
(3).High corrosion resistance.
(4).5-10 years weather resistance.
(5).Good wear resistance & anti-scratch.
(6).Size customized.
| Alloy: | 6063 | 6061 | 6060 | 6005 | 6082 | ||
| Temper : | T5 | T6 | |||||
| Standard: | DIN | AAMA | AS | CHINAGB | |||
| Certification: | ISO9001: 2008. | ||||||
| Surface Finish: | Mill finish | Anodizing | Powder Coating | Wood Grain | Electrophoresis | Polished | Brushed |
| Color: | Anodizing: | Silver, bronze, champagne, titanium, nickel, golden yellow, etc. | |||||
| Anodizing thickness is up to 25um. | |||||||
| Powder Coating: | White, black, bronze, grey, green, etc . | ||||||
| Powder coating thickness is more than 60um. | |||||||
| Wood Grain: | 1. Italian MENPHIS transfer printing paper. | ||||||
| 2. AKZO NOBEL INTERPON D1010(10 years warranty): Australia ceder, Bush cherry, Chest nut, Jarrah I, Jarrah II, Western red ceder, etc. | |||||||
| 3. AKZO NOBEL INTERPON D34(5 years warranty): Bush wood, Western red, Jarrah, Snow gum, etc. | |||||||
| Electrophoresis: | Silver, nickel, golden yellow, black, champagne, etc | ||||||
| Polishing | Silver, nickel, golden yellow, black, etc | ||||||
| Brushing: | Silver, nickel, golden yellow, black, bronze, etc | ||||||
| Machining: | Cutting, punching, drilling, bending, weld, mill, CNC, etc. | ||||||
| OEM customized aluminium profiles are available. | |||||||
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
