Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Fluorocarbon Powder Spray Coated /PVDF Paint, Drawbench,Steel Polished |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 |
| Highlight: | modular aluminium profile system,aluminium extrusion frame system |
||

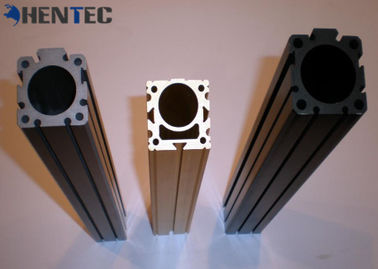

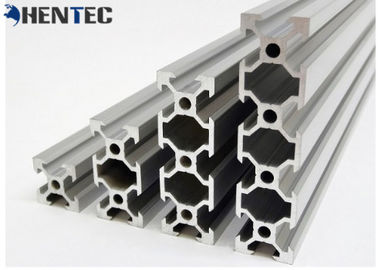

Wear Resistance 6061- T6 Alu Profilsystem Assembly Production Line For Industry
| Item | Aluminium extrusion profile for Industrial assembly production line |
| Material | Aluminium 6000 series alloy, such as 6061, 6063, 6082 etc. |
| Temper | T4, T5, T6 ,T66 |
| Thickness | General profile thickness:0.8-5.0mm; Anodized protection thickness: 8-25um; Powder coating color thickness: 40-120um. |
| Size | 3m-6m per piece, or customized. |
| Shape | Square, flat, round, hollow, oval, triangle, U-profile, L-profile, T-profile, H-profile, customized available. |
| Surface Treatment | Mill-finish, anodized, powder coated, electrophoresis, wood grain, timber, PVDF paint, polishing, brushed. |
| Color | Silver, champagne, black, bronze, gold, white or customized |
| Application | Window and door with thermal break strips, curtain wall, glass wall, furniture, ceiling, kitchen, LED strip, transportation rail, vehicle, motor housing, machine, tent, solar panel, industrial profile, decoration profile etc. |
| Deep Process | CNC, drilling, milling, cutting, tapping, welding, bending, assembling. |
| MOQ | 500 kgs for each item, usually 13-15 tons for a 20GP, 25-28 tons for a 40HQ. |
| OEM service | Drawing, sample or design service offer by customer. |
| Production Capacity | 2400-3000 Metric tons monthly. |
| Brand Name | Hentec |
| Certificatesand Standard | ISO9001-2008/ISO 9001:2008 |
| Guarantee | Surface color can be stable for 10-20 years indoor using. |
| Packing Details | Inside: pack with plastic protective film to protect each piece. |
| Outside: wrap to bundle by waterproof craft paper or EPE film, or customized | |
| Delivery time | Die developing and sample testing: 12-18 days . |
| Mass production: 25-30 days after confirming sample by buyer. | |
| FOB Port | Shanghai |
| Payment Terms | T/T 30% for deposit, balance before delivery. |
| Settlement Terms | Charge by final actual weight or by drawing theoretical weight. |
Description :
1. Description:6061-T6 Industrial Aluminium Profile System Assembly Production Line for Industry
2. Alloy temper: 6060/6063-T6/T5;
3. Standard: EN755, ASTMB221, DIN Standard
4. Surface treatment: Mill finishes; Anodized; Powder coated, wooden grain, polished, brushed.
5. Application: Assembly Production Line
6. Advantage:
1) Pure 99.7% aluminum materials without any scrap used
2) OEM welcome, we can design and cut die to meet customer's special demand
3) Wonderful surface treatment, we can meet customers required on surface
4) Strictly quality control process assured higher quality.
5) Packing safety and convenient.
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
