Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Extrusion Bar | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized , Etc |
| Temper: | T4, T5, T6 ,T66 | Application: | Buildings,commercial,industrial |
| Highlight: | construction aluminium profile,aluminium profile extrusion |
||

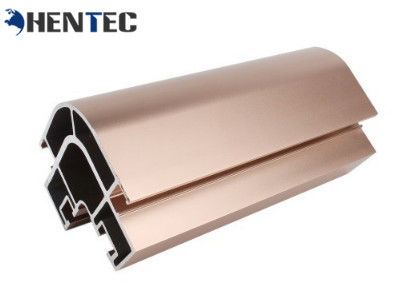

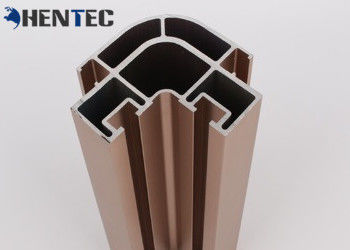

Custom Construction Aluminum Profile , Aluminium Extruded Profiles For Building
Hentec Industry Co.,Ltd , owning the most species-wide of construction aluminum profiles in China . Build a complete production chain from extrusion to end products like aluminium profiles and windows and doors and curtain wall. Deep Processing Ability for aluminum and CNC: Fabrication, Drill hole, milling, de-burr, chamfer, stretch bending, welding and so on.
1. Alloy :6063,6061,6005 or according to customer’ s choice
2. Material:Aluminum
3. Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4. Deep process: Milling, Drilling, Bending,Cutting
Description:
| 1 | Business Type | Manufacturer |
| 2 | Standard | GB 5237-2008, ASTM B221, EN755-9. |
| 3 | Product Series | Aluminum profile for construction,industry,furniture. |
| 4 | Price | Based on LME Aluminium Ingot 3 monthes seller price (www.ime.com)+processing fee. |
| 5 | Payment Term | T/T,L/C at sight. |
| 6 | Surface Treatment | Anodizing, powder coating, electrophoresis, fluorocarbon liquid painting. |
| 7 | Specification | Alloy: 6063, 6060, 6061, 6005, 6082. State: T5/T6. Length: 1m-6.5m. Anodizing thickness: 10-25micro. Powder coating thickness: >60micro. Tensile strength: >16mpa. Yield strength: >110mpa. Extensibility: >8%. Hardness(HW): >8. |
| 8 | Packing | Kraft paper, protective film, plastic shrink, pearl wool, box, wood frame. |
| 9 | MOQ | 500kg per item. |
| 10 | Delivery Time | 10 days cut the moulds, another 30 days complete the mass production. |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
