Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fan Blade | Item: | Aluminum Extrusion Profile Of Industrial Fan Blade |
|---|---|---|---|
| Temper: | T5, T6 | Surface: | Powder Painting |
| Material: | Aluminium | Machining: | 1. Milling; 2. Drilling; 3. Cutting |
| Highlight: | exhaust fan blades,palm frond fan blades |
||

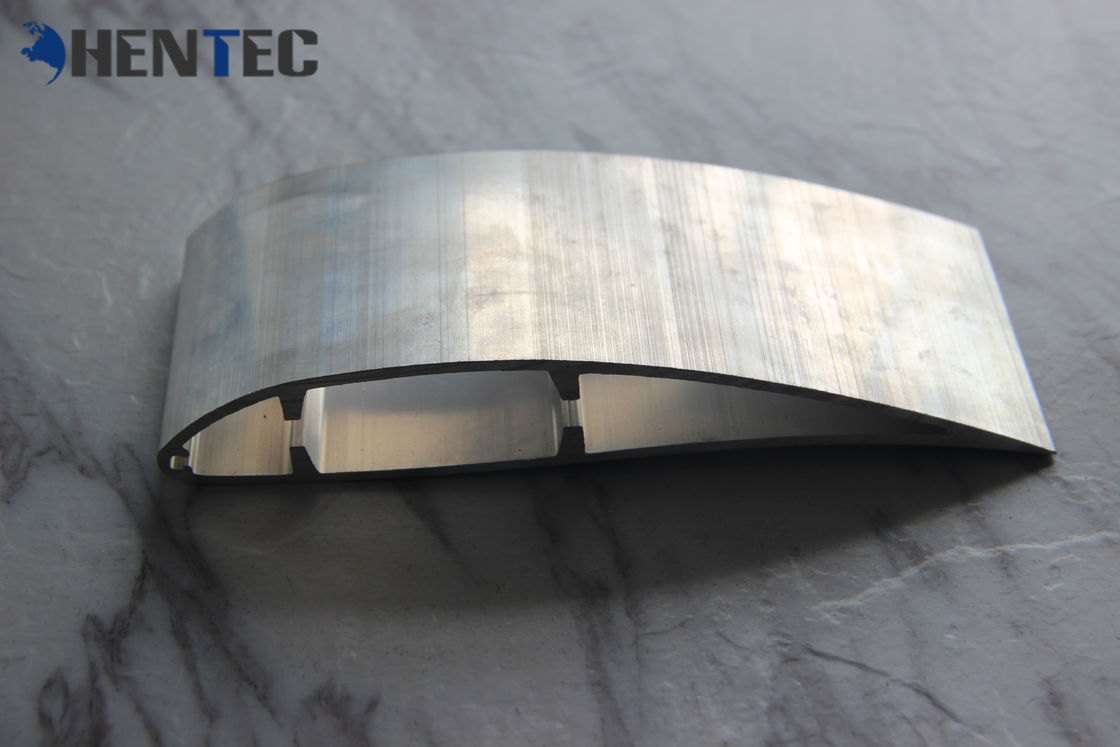

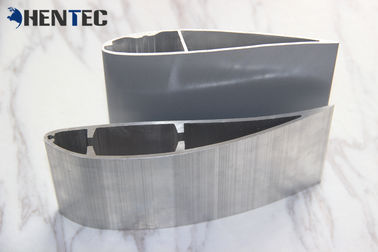

Extruded Aluminum Industrial Fan Blade Anodizing / Powder Painting Surface
Hentec Industry Co., Ltd professional at aluminum extrusion profiles, both semi and final products, such as Aluminum fan blade , LED aluminum bracket, aluminum door, aluminum window, aluminum curtain rod, aluminum guide rail, aluminum fencing and all kinds of industrial and building aluminum profile, square, round, flat, oval, angle, irregular and all types according to the customers' drawing.
| Item | Aluminium Extrusion Profiles | ||
| Material | 6000 series Aluminium T4, T5, T6 | ||
| Size / Thickness | 1.General profiles thickness from 0.8 to 5.0mm, length from 3m-6m or customized available 2.Anodize protection film thickness from 8~25 um 3.Powder coating from 40 ~ 120 um. |
||
| Shape | square, round, t shaped, rectangular, customized | ||
| Surface treatment | Mill finish,Anodizing,electrophoresis,powder coating,PVDF coating, wood transfer,polishing,brushing etc. | ||
| Colors | silver , black , blue, wood color , RAL powder coating color and so on | ||
| MOQ | 500kgs for each item | ||
| FOB Port | Shanghai | ||
| payment terms | T/T 30% for deposit , after the copy of BOL . | ||
| settlement term | Charge by final actual weight or by drawing theoretical weight. | ||
| Certificate and Standard | SGS, CE, GB, ISO, | ||
| Packing and shipment | |||
| Packing | 1.Plastic film& kraft paper packing. | ||
| 2.Plastic bag packing. | |||
| 3.Carton packing and Pallet | |||
| 4.Plastic film and pallet. | |||
| shipment | 1.By Sea | ||
| 2.By Air | |||
| Production Capacity | |||
| Max production capacity(tons/year) | 100 000 | ||
| Extrusion equipment | Max | Min | Quantity |
| 4000 Tonnage | 660 Tonnage | 26 sets | |
| CNC Machine | 4 sets | ||
| Punching Machine | 10 sets | ||
| 12 meter long CNC Machine | 1set | ||
| Drilling Machine | 6sets | ||
| Anodized Line | 2 sets | ||
| Powder coated Line | 2 sets | ||
| Imitated Wooden Line | 1 set | ||
| eletropheresis line | 1 set | ||
Specifications:
1. Primary Technical Data
1) Chemical composition
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
3. Surface Treatment of Sections
|
|
(μm),not diminish than |
acid-resistant |
abrasion resistance |
|||
|
(Min-average film |
(Min-part film |
CASS |
(S) |
|
||
|
(h) |
Class |
(f, g /μm) |
||||
|
AA10 |
10 |
8 |
16 |
≥9 |
≥50 |
≥300 |
|
AA15 |
15 |
12 |
32 |
≥9 |
≥75 |
≥300 |
|
AA20 |
20 |
16 |
56 |
≥9 |
≥100 |
≥300 |
|
AA25 |
25 |
20 |
72 |
≥9 |
≥125 |
≥300 |
Competitive Advantage:
1.High hardness, hard aluminum series.
2.Fair corrosion resistance. Heat treatable
3.Good workability. Good appearance
4.High quality and reasonable price.
5.Our product is your best choice.
