Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Fluorocarbon Powder Spray Coated /PVDF Paint, Drawbench,Steel Polished |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 |
| Highlight: | modular aluminium profile system,aluminium extrusion frame system |
||

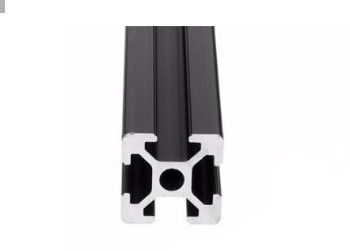

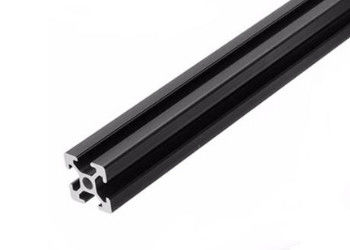

Black Anodized Aluminium Profile System T Slot Aluminium Extrusion
1. Shorting design and assembling time;
2. Controlling cost and providing more efficient working project;
3. Improving your systems and space management with our professional technical team.
4.The raw material is aluminium ingot;
5.Melting:Aluminium ingot melting through a high temperature,and then casting into aluminium bar.
6.Extruding:Open a mould according to the section design,and then press the heated aluminium bar intoaluminium profiles;
7.Anodizing:Under the corresponding electrolyte and specific process conditions, aluminum and its alloys form a layer of oxide film on aluminum products (anode) under the action of applied current. The oxide film has protective, decorative and some other functional properties.We can also do many kinds of other surface treatment.
8.Quality control:Strict standards on quality control to insure your benifits.
Description:
1. Material: 6063,6061,6060,6005,6005A,etc.
2. Temper: T5 or T6
3. Finish: Mill finish, anodizing, powder coating, electrophoresis, pvdf/carbon-flouride coated, polishing, brushing, sand blasting
4. Various colors: Silver, bronze, black, gold, blue,grey, champagne, bright, etc.
5. Machining: Cutting, punching, drilling, tapping, milling, bending, welding, CNC etc.
6. Various in styles and sizes:
A) Aluminum alloy bars: as 6063,6005,6061,6060, special materials such as 6082etc.
B) Aluminum profiles:
---General aluminum profiles (various shapes of pipes/tubes, angles, T or U shapes etc.)
--- Industrial aluminum profiles ( TV frames, Rim for bicycles and motorcycles, Heat sink profiles, Furniture, Ladder, Guide Rail, Leisure materials, Shower Room, Solar Module Frame, Motor Shell, Pipeline Integration etc.)
--- Construction aluminum profiles
7. Certification: ISO9001,SGS,ROHS,TUV
8. Strong technical development ability, can provide high intensity and high ductility aluminum profiles, to meet customers' different requirements.
9. OEM service available, customized design available
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
