Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |
| Highlight: | heatsink extrusion profiles,aluminium extrusion heat sink profiles |
||

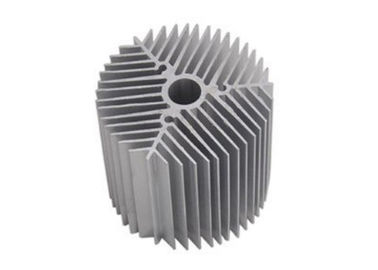

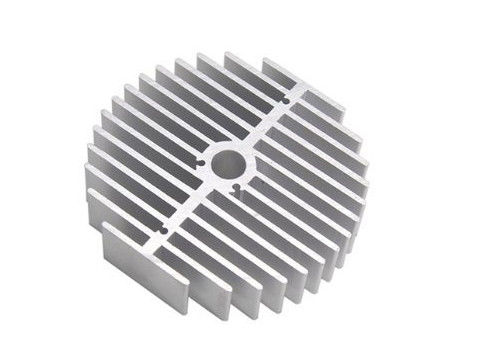

Sunflower Heat Sink Standard Aluminum Extrusion Profiles For Led Light , Anodized
Our Advantages:
1. 17+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to 40+ countries;
2. ISO: 9001:2008,RoHS, SGS, Reach, D&B
4. 100% new material
5. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
6. Effective and strong technical support (30+ engineers) and excellent sales services .
7. Sufficient production capacity (22 extrusion lines; 3+ CNC machines).
8. Efficient communication (48-hour quote lead time).
Production Information
| ITEM | FINE METAL | Other company |
| Material | 99.9% raw aluminum ingot.General ALLOY : 6063, 6061, 6005 , 6060, 6082 . | May use recycle aluminum ingot. |
| Customized services | Customized product efficiently base on your request.Sample production time:3-5days. | Many procedures.Sample production time:7-15days. |
| Mold quality | SLOW WIRE BURN MOLD for normal profile and ALLOY MOLD for tubes in order to produce less machinery line products. | FAST WIRE BURN MOLD.Cheaper mold cost but will produce rough profile surface. |
| QC quality standard | Powerful quality control standard which will higher than SUPER HIGH QUALITY LEVEL of GB5327-2008.We can reach 0.05MM tolerance. | GB5237-2008 Chinese Standard.Other factory can reach 0.13MM tolerance. |
| CNC fabrication | 6500MM long CNC machine,we can produce under 6500mm length products. | CAN'T produce longer than 850mm long profile. |
| Precious cutting | Precious Auto-cutting machine,Accuracy:±0.05MM | Normal cutting machine.Accuracy:±5MM |
| Pre-treatment of anodizing | We can provide sandblasting / polish / brush for small profile in our factory. | Need outsourcing. |
Technology Supports
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
We can offer professional Manufacturing and exporting service, OEM/ODM for Metal & Plastic parts in China. All the parts manufactured by CNC Lathe & Milling Machine Center.
