Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fan Blade | Item: | Industrial Fan Blade Profile |
|---|---|---|---|
| Temper: | T5 | Surface: | Anodize |
| Material: | Aluminum | Machining: | 1. Milling; 2. Drilling; 3. Bending; 4. Cutting |
| Highlight: | exhaust fan blades,palm frond fan blades |
||

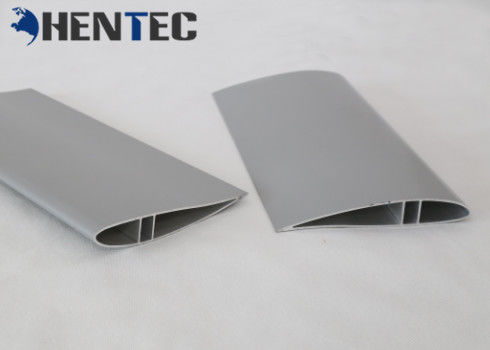

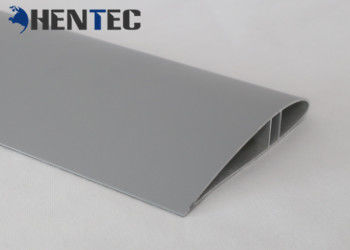

Powder Painted Industrial Fan Blade / Aluminum Extrusion Profile For Cooling Blade
Hentec Industry Co., Ltd is one China Manufactory, professional at aluminum extrusion profiles, both semi and final products, such as Aluminum fan blade , LED aluminum bracket, aluminum door, aluminum window, aluminum curtain rod, aluminum guide rail, aluminum fencing and all kinds of industrial and building aluminum profile, square, round, flat, oval, angle, irregular and all types according to the customers' drawing.
| Product Name | Industrial aluminium profile/ aluminum extrusion |
| Material | 6063 aluminium alloy |
| Temper | T4 T5 T6 T66 |
| Surface treatment | Mill finish, powder coating, anodizing, wooden grain coating, polishing, eletrophoresis, PVDF, sanding blasting, etc. |
| Size | Width :90-250MM |
| Color | Natural silver, can be customised. |
| Surface | Mill finish, Anodizeding, Sand Blasting, Powder coating, etc. |
| Deep processing | Cutting, Drilling, Treading, Bending, etc. |
| Application | Industry |
| Certification | ISO9001 |
Alloy |
Si |
Mg |
Fe |
Cu |
Mn |
Zn |
Cr |
Ti |
Impurity |
Al |
|
Unit |
Total |
||||||||||
6063 |
0.2-0.6 |
0.45-0.9 |
< 0.35 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.05 |
< 0.15 |
Surplus |
6061 |
0.4-0.8 |
0.8-1.2 |
< 0.7 |
0.15-0.4 |
< 0.15 |
< 0.25 |
0.04-0.35 |
< 0.15 |
< 0.05 |
< 0.15 |
Surplus |
6060 |
0.3-0.6 |
0.35-0.6 |
0.1-0.3 |
≤0.1 |
≤0.1 |
≤0.15 |
≤0.05 |
< 0.1 |
< 0.05 |
< 0.15 |
Surplus |
ADODIZINMG QUALITY |
||||
Grade |
corrosion resistance |
abrasive resistance |
||
CASS test |
alkaline dropping test |
sandtrial Abrasion coefficient f,g/um |
||
hours |
grade |
|||
AA10 |
16 |
≥ 9 |
≥ 50 |
≥ 300 |
AA15 |
32 |
≥ 9 |
≥ 75 |
≥ 300 |
AA20 |
56 |
≥ 9 |
≥ 100 |
≥ 300 |
AA25 |
72 |
≥ 9 |
≥ 125 |
≥ 300 |
| POWDER COATING QUALITY | ||||||||
| Gloss values | Thickness(um) | color variation | indentation resistance | adhesion | impact resistance | cupping test | presentation quality | |
| Max Thickness | Min Thickness | |||||||
| 60 | ≤ 120 | ≥ 40 | Color should be consistent with the sample color | ≥ 80 | 0 | No cracking and shedding phenomenon after the front impact test,small fine lines around the concave is allowed | No cracking and shedding phenomenon after the cupping test ( 6mm indentation depth ) | |
Advantages of our company:
1.Owe 600-4000 tons extruders.We could produce big size of profile.
2.Monthly production capacity:4000 tons.
3.99.9% raw aluminum ingot.General ALLOY:6063, 6061,6005, 6060,6082 .
4.e accept small QTY for special alloy.
