Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Alloy: | 6063 / 6061 / 6005 |
|---|---|---|---|
| Surface: | Powder Painted / Anodize | Shape: | Square |
| Logo: | Silk Screen | Color: | Customized |
| Highlight: | aluminium extruded profiles,aluminum extruded shapes |
||

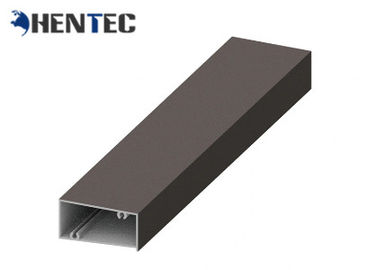

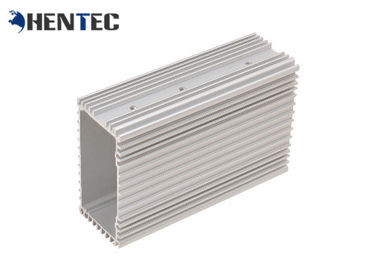

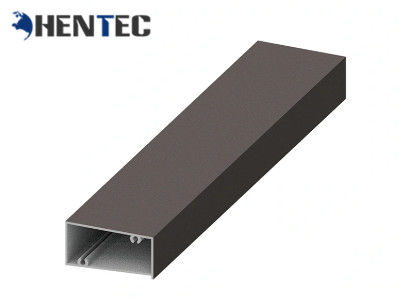

Anodized / Powder Painting Aluminum Extrusin Profile / Alu rectangular tube , Alu square tube , Alu pipe , Alu tube
Description :
| Item | Alu rectangular tube , Alu square tube , Alu pipe , Alu tube |
| Material | 6000 series Aluminium |
| Temper | T4, T5, T6 |
| Size / Thickness | General profiles thickness from 0.8 to 5.0mm; Anodize protection film thickness from 8~25 um, powder coating from 40 ~ 120 um. |
| Shape | Square, round, rectangular, customized |
| Application | In furniture, windows&doors, decorations ,industry, construction and so on |
| Surface treatment | Powder coating, electrophoresis, wood grain , anodized and so on |
| Colors | Ref powder coating color sheet and customized color available |
| Deep process | CNC, drilling, milling, cutting, welding, bending, assembling |
| MOQ | 500kgs for each item |
| Packing Details | (1)Inside : packed with plastic protective film to protect each piece |
| (2) Outside: Wrap to be bundles by waterproof craft paper | |
| Delivery time | (1)Die Developing and Sample testing: 12-18 days . |
| (2) Mass Production completed: 20-30days after sample is confirmed by Buyer. | |
| FOB Port | Shanghai |
| payment terms | T/T 30% for deposit, balance before shipping. |
| settlement term | Charge by final actual weight or by drawing theoretical weight. |
| production capacity | 5000 tons monthly, 60000 tons annually. |
| Certificate and Standard | CQM, SGS, CE, GB, ISO available |
| Guarantee | Surface color can be stable for 10~20 years indoor using. |
. Production Lines
| Production Lines | Name | Qty | Max Product Length |
| Extruding Lines | 600 ton extruder | 5 | |
| 800 ton extruder | 2 | ||
| 1100 ton extruder | 4 | ||
| 1250 ton extruder | 4 | ||
| 1800 ton extruder | 4 | ||
| 4500 ton extruder | 2 | ||
| Surface Treatment Lines | Anodizing | 1 | ≤6.5 m |
| Powder coating | 2 | ≤13 m | |
| Electrophoresis | 1 | ≤6.5 m | |
| Deep Processing Lines | Cutting machine | 3 | |
| Punching machine | 5 | ||
| Milling machine | 3 | ||
| CNC machine | 3 | ||
| Polishing machine | 1 | ||
| Tapping machine | 5 | ||
| Riveting machine | 1 |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
- WHO ARE WE
1. Top Aluminium profile manufacturer for 20 years in China.
2. Diverse Products used in the fields of construction, industry and deep-processing.
- WHY CHOOSE US
1. Quality Control is put in the core position of our production.
2. Customized Production shows our capability in product design and process control.
3. Perfect Customer Services include careful packaging, quick delivery and good
after-sale service.
- WHERE DO WE EXPORT
1. North America: USA, Canada.
2. South America: Brazil, Argentina, Chile, etc.
3. Europe: Spain, France, Germany, The Netherlands, Russia, etc.
4. Aisa and Oceania: Vietnam, Thailand, India, Australia, etc.
5. Total 53 countries.
Contact Person: Mr. Chris Gong
Tel: +86-13861643436
Fax: 86-0510-86215836
