Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Fan Blade | Item: | Aluminum Extrusion Profile Of Industrial Fan Blade |
|---|---|---|---|
| Temper: | T5, T6 ,T66 | Surface: | Anodize |
| Material: | Aluminium | Machining: | 1. Milling; 2. Drilling; 3. Bending; 4. Cutting ... |
| Highlight: | replacement fan blade,exhaust fan blades |
||

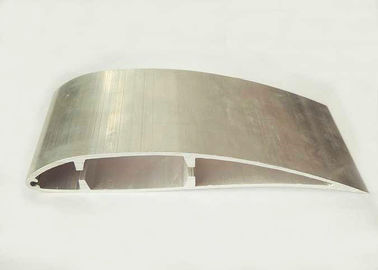

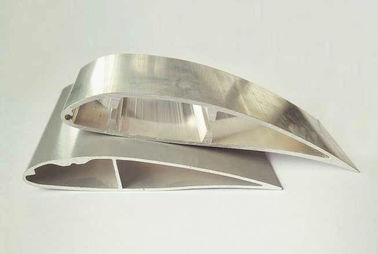

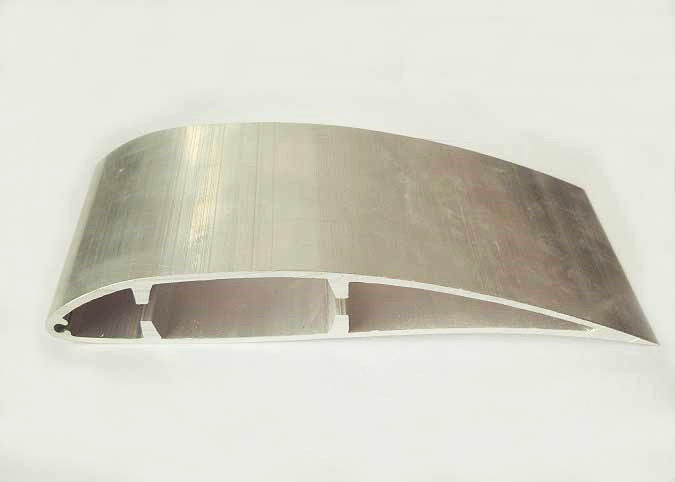

Powder Painting Fan Blade For Cooling Towers , Ceiling Aluminum Fan Blades
We are one of the biggest aluminium factory in the east of China . Owning the most species-wide of aluminum profie in the world. Marketing occupancy of Fan blade profile in China is No. 1 .Deep Processing Ability for aluminum and CNC: Fabrication, Drill hole, milling, de-burr, chamfer, stretch bending, welding and so on.
Descrition:
| 1 | Business Type | Manufacturer |
| 2 | Standard | GB 5237-2008, ASTM B221, EN755-9. |
| 3 | Product Series | Aluminum profile for construction,industry,furniture. |
| 4 | Price | Based on LME Aluminium Ingot 3 monthes seller price (www.ime.com)+processing fee. |
| 5 | Payment Term | T/T,L/C at sight. |
| 6 | Surface Treatment | Anodizing, powder coating, electrophoresis, fluorocarbon liquid painting. |
| 7 | Specification | Alloy: 6063, 6060, 6061, 6005, 6082. State: T5/T6. Length: 1m-6.5m. Anodizing thickness: 10-25micro. Powder coating thickness: >60micro. Tensile strength: >16mpa. Yield strength: >110mpa. Extensibility: >8%. Hardness(HW): >8. |
| 8 | Packing | Kraft paper, protective film, plastic shrink, pearl wool, box, wood frame. |
| 9 | MOQ | 500kg per item. |
| 10 | Delivery Time | 10 days cut the moulds, another 30 days complete the mass production. |
| 11 | Normal Order Sequence | 1.Conform the drawings, colors and price; 2.Pay the mould fee and we start to make moulds; 3.We send samples to you for your confirmation; 4.Make the payment og 30% deposit, we start production; 5.Delivery. |
Specifications:
1. Primary Technical Data
1) Chemical composition
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
3. Surface Treatment of Sections
|
|
(μm),not diminish than |
acid-resistant |
abrasion resistance |
|||
|
(Min-average film |
(Min-part film |
CASS |
(S) |
|
||
|
(h) |
Class |
(f, g /μm) |
||||
|
AA10 |
10 |
8 |
16 |
≥9 |
≥50 |
≥300 |
|
AA15 |
15 |
12 |
32 |
≥9 |
≥75 |
≥300 |
|
AA20 |
20 |
16 |
56 |
≥9 |
≥100 |
≥300 |
|
AA25 |
25 |
20 |
72 |
≥9 |
≥125 |
≥300 |
Aluminium Profile Advantage
Experience:
More than 15 years production and technology experience and 10 year's exporting experience.
Market:
Northern and Southern America, Africa and Middle East, Asia etc.
Technique:
Oxidation,Spray,Electrophoresis.We can also do aluminium furniture which resembles like real solid wood furniture.
Sample:
Free samples are available. We can do various customized aluminium profile.
Management:
We have large workshops for different production techniques.Different sections help us control the good's quality and keep the workshop clean.
