Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |
| Highlight: | Anodized Aluminium Extrusion Heat Sink Profiles,Radiator Aluminium Extrusion Heat Sink Profiles,aluminium extrusion heat sink profiles |
||

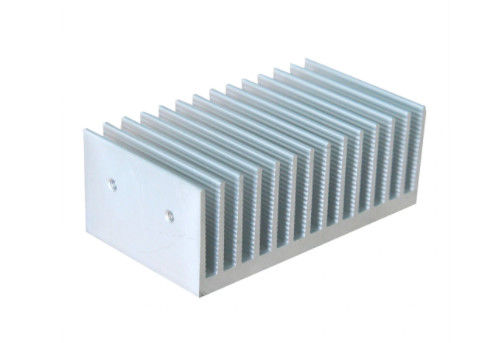

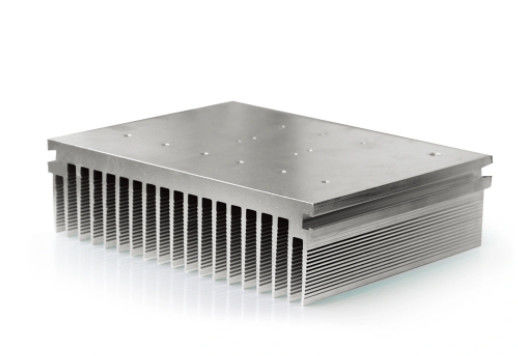

Anodised Standard Aluminium Extrusion Heat Sink / Radiator
Our Advantages:
1. 17+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to 40+ countries;
2. ISO: 9001:2008, RoHS, SGS, Reach, D&B
3. 100% new material
4. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
5. Effective and strong technical support (30+ engineers) and excellent sales services .
6. Sufficient production capacity (44 extrusion lines; 3+ CNC machines).
7. Efficient communication (48-hour quote lead time).
Production Information
| Product type | Standard / Custom Heat Sink |
| Material | Aluminum 6063 |
| Sizes | Have more than 1000 existing modes, also can be customized design. |
| Production Process | Profile extrusion, Cutting,Deburring, CNC Processing, Stamping,(drilling holes, tapping,Chamfering,Milling),(Brushing, Sandblasting, soda boiling,polish)Surface Treatment(Anodization, Painting, E-coating, Nickel plating), 100%Inspection , Assembly,Package, etc. |
| Surface oxidation | Black anodizing, Clear anodization,Painting,E-coating |
| Devices | extrusion lines,Cutting machines, CNC machines, Stamping machines,milling machines, drilling machines,polish machine,laser machines,anodization line,assembly lines. etc. |
| Certificates &Standard | ISO9001:2015, SGS, ROHS |
| MOQ | There is no MOQ requirements if we keep stock for existing models, MOQ can be negotiated. |
| Packing | Foam, Carton, Wooden case, which is suitable for. |
| Payment Term | T/T, L/C |
| Lead Time | Normally 7-20 working days after deposit received. |
Technology Supports
Type of our Heat Sink :
Profile radiator, insert radiator, spade radiator, high-density tooth radiator, case integrated radiator, water-cooling radiator, resistance radiator, interdigital radiator and various aluminum alloy profiles for case and cabinet, aluminum bar for power electronics, bridge profile, bus duct and other industrial aluminum alloy profiles.
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
We can offer professional Manufacturing and exporting service, OEM/ODM for Metal & Plastic parts in China. All the parts manufactured by CNC Lathe & Milling Machine Center.
