| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |
| Highlight: | sunflower aluminum heatsink extrusion profiles,t5 aluminum heatsink extrusion profiles,anodized aluminium extrusion heat sink profiles |
||

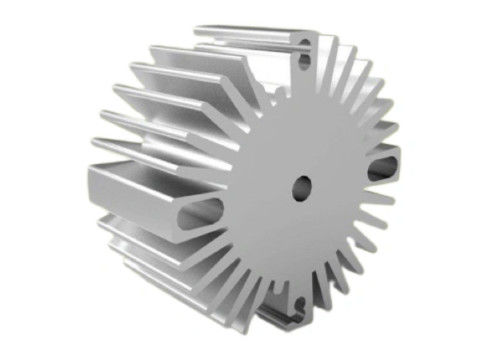

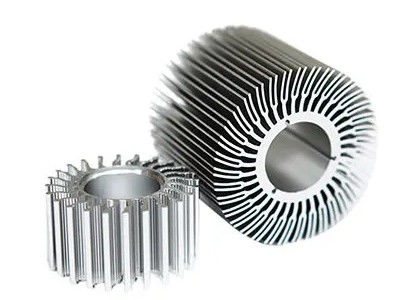

Sunflower Heat Sink Standard Aluminum Extrusion Profiles For Led Light , Anodized
Our Advantages:
1. 17+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to 40+ countries;
2. ISO: 9001:2008, RoHS, SGS, Reach, D&B
3. 100% new material
4. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
5. Effective and strong technical support (30+ engineers) and excellent sales services .
6. Sufficient production capacity (22 extrusion lines; 3+ CNC machines).
7. Efficient communication (48-hour quote lead time).
8. Factory Price Customized Available .
Production Information
| Material: | Aluminum(6061 , 6063 ,6005,6082,6060 ) |
Surface treatment: |
Anodized; Powder-coating; Sand-blasting; Painting; Black oxide coating, Polishing; If you need other treatments, we will try best to meet your needs! |
Lead time : |
In general: 7-15days Special custom service: making arrangement upon customers' request |
| Experience: | 17years of extrusion and CNC machining products |
| Certification: | ISO9001:2008, ROHS |
Technology Supports
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
We can offer professional Manufacturing and exporting service, OEM/ODM for Metal & Plastic parts in China. All the parts manufactured by CNC Lathe & Milling Machine Center.
