Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |
| Highlight: | odm aluminum heat sink extrusion,6063 t4 aluminum heat sink extrusion,6063 t4 heat sink profiles aluminium |
||

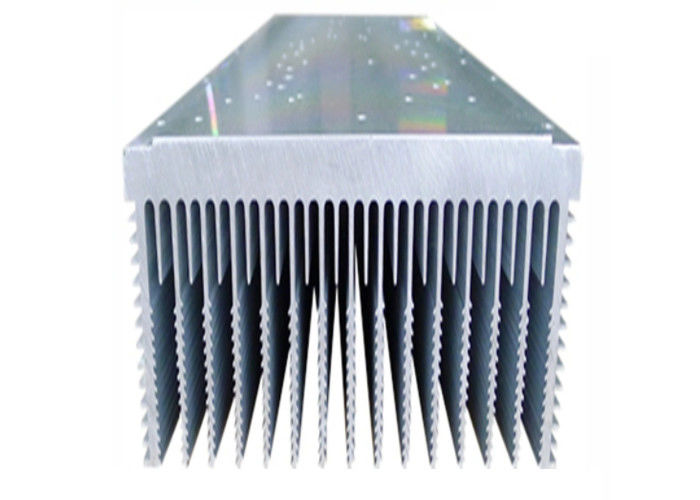

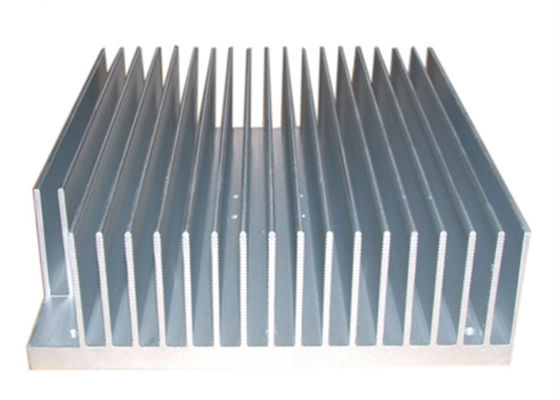

Aluminum Extruded Heat Sink Profiles , Polished Surface
Our Advantages:
1. 17+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to 40+ countries;
2. ISO: 9001:2008,RoHS, SGS, Reach, D&B
4. 100% new material
5. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
6. Effective and strong technical support (30+ engineers) and excellent sales services .
7. Sufficient production capacity (22 extrusion lines; 3+ CNC machines).
8. Efficient communication (48-hour quote lead time).
Production Information
|
Item |
China 6063 T5 Indusrty Aluminum Extrusion Heatsink Profiles |
|
Material |
Alloy 6063, 6061,6005,6060 or according to customer' s choice |
|
Temper |
T4, T5, T6 |
|
Surface |
Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc. |
|
MOQ |
1 ton . Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container. |
|
Profile type |
Aluminum Extrusion Heat sink which is use for medical equipment ,LED Heat sink ,CPU Cooler , Led Lamp , Led light , notebook cooler ,and some other filed . |
|
Processing |
Aluminum profile extruding, Precise cutting, Straight rectification, Bending, Drilling, Tapping, Stamping, Pulling, CNC mill, CNC lathe. For precious machining and cutting . |
|
Moulding |
1. Using our mould, free; 2. Using customer' s drawing, opening mould fee need to be paid . |
|
Certificate |
ISO14001:2004, ISO9001:2000 |
|
Standard |
Meet the China national standard GB/T6892-2006 and Europe standard EN12020-1,2(2001) and American standard AAMA611-98. |
|
FOB Port |
Shanghai, etc. |
Technology Supports
Engineering Design.
Quality Standard: China GB, according to the Drawing and the Customer's Details.
Auto CAD.
Order & Payment & Shipment
Opening Time of the new Die: 5-10 days.
Sample: 10-15days.
Delivery: 10-30 Days.
MOQ: 3 Tons.
Payment Term: 40% T/T in advance and balance 60% against the copy of original B/L.
Price: $2500/T - $3500/T, the most competitive price.
Port: Shanghai
Trade Terms: FOB, CIF, EXW, etc.
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
We can offer professional Manufacturing and exporting service, OEM/ODM for Metal & Plastic parts in China. All the parts manufactured by CNC Lathe & Milling Machine Center.
