Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063，6061 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized Powder Coated，Drawbench,Steel Polished |
| Deep Process: | Milling, Drilling, Cutting | Temper: | T5, T6 |
| Highlight: | assembly line construction aluminium profiles,oem construction aluminium profiles,construction aluminium profiles 6061 |
||

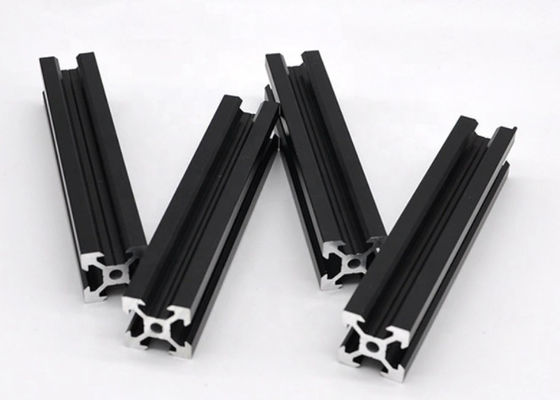

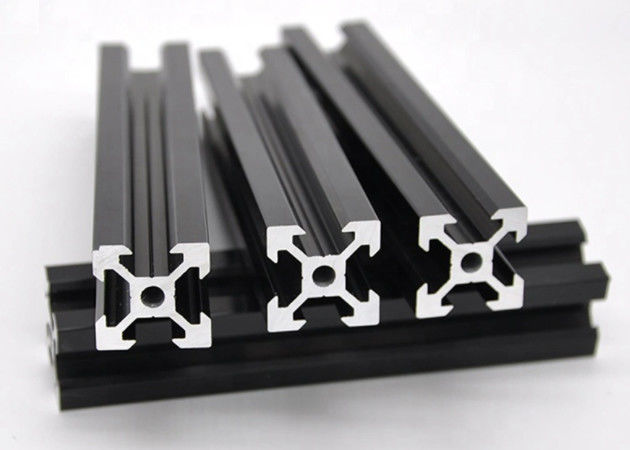

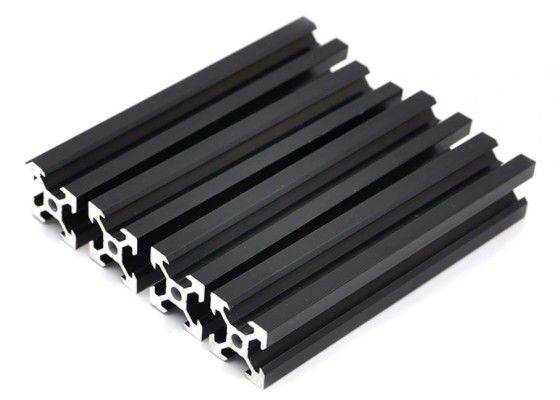

OEM Industrial Aluminum Extrusion Profiles For Assembly Line
We have Germany imported machines and professional engineers.In this case,we can do high technics customized aluminium alloy extrusion and profile as per your drawings or samples.
Product Specification
| Product Name | Industrial aluminium profile /aluminum extrusion |
| Material | 6063 aluminium alloy |
| Surface treatment | Mill finish,powder coating,anodizing,wooden grain coating,polishing,eletrophoresis,PVDF,sanding blasting,etc. |
| Size | 15/20/30/40/60/80/90/100 series etc. |
| Temper | T4 T5 T6 T66 |
| Slot Width | 6MM,8MM,10MM |
| Color | Natural silver,can be customised. |
| Deep processing | Cutting,Drilling,Treading,Bending,etc. |
| Application | Building,Industry,Machinery |
| Certification | ISO9001 |
| TABLE OF CHEMICAL COMPOSITION OF ALUMINUM ALLOY | |||||||||
Alloy |
Si |
Mg |
Fe |
Cu |
Mn |
Zn |
Cr |
Ti |
Al |
6063 |
0.2-0.6 |
0.45-0.9 |
< 0.35 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.1 |
Surplus |
6061 |
0.4-0.8 |
0.8-1.2 |
< 0.7 |
0.15-0.4 |
< 0.15 |
< 0.25 |
0.04-0.35 |
< 0.15 |
Surplus |
| 6005 | 0.5-0.9 | 0.4-0.7 | 0.35 | 0.3 | 0.50 | 0.2 | 0.3 | 0.1 | Surplus |
6082 |
0.7-1.3 | 0.6-1.2 | 0.5 |
≤0.1 |
0.4-1.0 | ≤0.2 |
≤0.25 |
< 0.1 |
Surplus |
ADODIZINMG QUALITY |
||||
Grade |
corrosion resistance |
abrasive resistance |
||
CASS test |
alkaline dropping test |
sandtrial Abrasion coefficient f,g/um |
||
hours |
grade |
|||
AA10 |
16 |
≥ 9 |
≥ 50 |
≥ 300 |
AA15 |
32 |
≥ 9 |
≥ 75 |
≥ 300 |
AA20 |
56 |
≥ 9 |
≥ 100 |
≥ 300 |
AA25 |
72 |
≥ 9 |
≥ 125 |
≥ 300 |
Description:
1. Material: 6063,6061,6060,etc.
2. Temper: T5 or T6
3. Finish: Mill finish, anodizing, powder coating, electrophoresis, wooden transfer or pvdf/carbon-flouride coated, polishing, brushing, sand blasting
4. Various colors: Silver, bronze, black, gold, blue,grey, champagne, bright, etc.
5. Machining: Cutting, punching, drilling, tapping, milling, bending, welding, CNC etc.
6. Various in styles and sizes:
A) Aluminum alloy bars: 6000 series, normal material such as 6063,6005,6061,6060, special materials such as 6082 etc.
B) Aluminum profiles:
---General aluminum profiles (various shapes of pipes/tubes, angles, T or U shapes etc.)
--- Industrial aluminum profiles ( TV frames, Rim for bicycles and motorcycles, Heat sink profiles, Furniture, Ladder, Guide Rail, Leisure materials, Shower Room, Solar Module Frame, Motor Shell, Pipeline Integration etc.)
--- Construction aluminum profiles
7. Certification: ISO9001,SGS,ROHS,TUV
8. Strong technical development ability, can provide high intensity and high ductility aluminum profiles, to meet customers' different requirements.
9. OEM service available, customized design available
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
