Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |
| Highlight: | cnc machining aluminium heatsink extrusion,6063 aluminium heatsink extrusion,6005 heat sink aluminium extrusion |
||

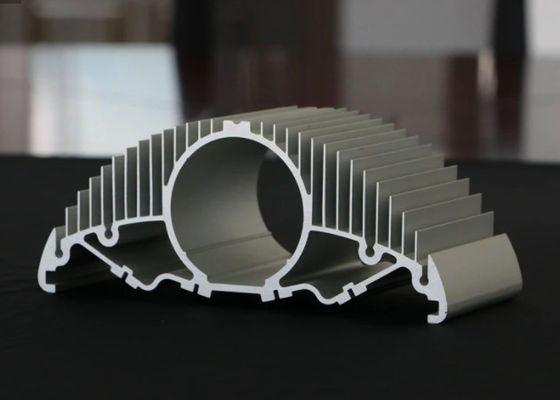

Large Air Cooling Aluminum Heat Sink Extrusion Profiles With Cnc Machining
1. Material: 6063,6061,6060,6005 or other
2. Temper: T4 ,T5 , T6 , T66
3. Finish: Mill finished, anodized,powder coated,polished,brushed,sand blasted
4. Various colors: Silver,bronze,black,gold,blue,grey,champagne,red,etc.
5. Machining: Cutting,punching,drilling,milling,bending,welding,CNC etc.
6. Various in styles and sizes:
A). Aluminum alloy bars: 6000 series, normal material such as 6063,6005,6061,6060, special materials such as 6082 etc.
B). Aluminum profiles:
-General aluminum profiles (various shapes of pipes/tubes, angles, T or U shapes etc.)
- Industrial aluminum profiles ( TV frames, Radiator profiles, Furniture, Ladder, Guide Rail, Leisure materials, Shower Room, Solar Module Frame, Motor Shell, Pipeline Integration etc.)
- Construction aluminum profiles ( Aluminum doors&windows, Sliding Windows, Curtain Wall Frame etc.)
7. Certification: ISO9001,SGS,ROHS
8. Strong technical development ability, can provide high intensity and high ductility aluminum profiles, to meet customers' different requirements.
9. OEM service available, customized design available
Quality Control: We operate the most strict quality system,the detection is from the material,production process to final product,and ensure the product quality.
Process: Die design--Die making--Smelting and alloying--Quality control--Extruding--Cutting--Heat treatment--Surface treatment--Welding--Packing
Packing: Packed with plastic film, then wrap by craft paper or EPE film.
Technology Supports
1. Engineering Design.
2. Quality Standard: China GB, according to the Drawing and the Customer's Details.
Specifications:
1. Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
We can offer professional Manufacturing and exporting service, OEM/ODM for Metal & Plastic parts in China. All the parts manufactured by CNC Lathe & Milling Machine Center.
