Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated，Drawbench,Steel Polished |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 , T66 |
| Highlight: | 6063 anodized aluminium profile,ca anodized aluminium profile,6063 anodised aluminium profile |
||

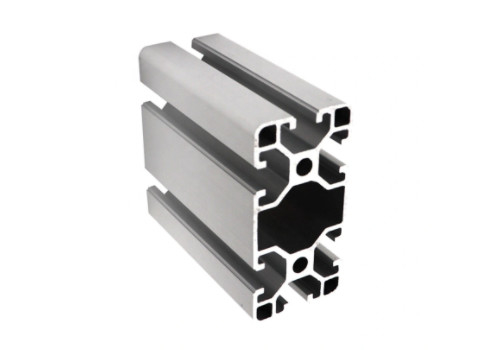

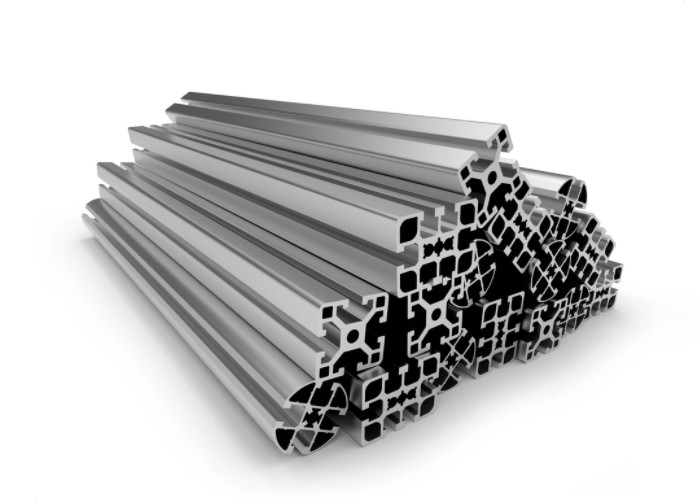

6063 Anodized Assembly Line Aluminium Extruded Profiles , T Slot / V Slot
MetalPlus ( Hentec ) has introduced foreign advanced equipment, our technical performance is leading technology,energy saving and environmental production. We have complete produce lines, including extruding , anodize, electrophoresis, powder coating, wood grain transfer, fluorocarbon powder coating, and other construction and industrial profiles which are widely used in building windows and doors, large curtain wall, high-grade decoration and industrial manufacturing.
Product Specification
| Aolly | 6063 | 6061 | 6060 | 6005 | 6082 | ||
| Temper | T4 | T5 | T6 | T66 | |||
| Standard | DIN | AAMA | AS | CHINAGB | |||
| Certification | ISO9001: 2008 | ||||||
| Surface Finish | Mill finish | Anodizing | Powder Coating | Wood Grain | Electrophoresis | Polished | Brushed |
| Color | Anodizing | Silver, bronze, champagne, titanium, nickel, golden yellow, etc. | |||||
| Anodizing thickness is up to 25um | |||||||
| Powder Coating | White, black, bronze, grey, green, etc | ||||||
| Powder coating thickness is more than 60um | |||||||
| Electrophoresis | Silver, golden yellow, black, champagne, etc | ||||||
| Polishing | Silver, golden yellow, black, etc | ||||||
| Brushing | Silver, golden yellow, black, bronze, etc | ||||||
| Machining | Cutting, punching, drilling, bending, weld, mill, CNC, etc. | ||||||
| OEM customized aluminium profiles are available. | |||||||
1.Alloy :6063,6061,6005 or according to customer’ s choice
2.Material:Aluminum
3.Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4.Deep process: Milling, Drilling, Bending,Cutting.
5.Application:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
6.Color:clear, satin, bronze, black, golden, silver, other multicolor
7.Temper: T4, T5, T6 ,T66
Applications:
Mainly used for industrial production , such as automation equipment , enclosure of the skeleton and the companies according to their own customized mold machinery and equipment , such as assembly line conveyor , hoist, dispenser, testing equipment, shelves , etc., electronic machinery industries and clean room with a gain majority.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
