Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Anodized Powder Coated，Drawbench,Steel Polished |
| Deep Process: | Milling, Drilling, Cutting | Temper: | T5, T6 |
| Highlight: | 6063 aluminium construction profiles,ca aluminium construction profiles,6063 aluminium extrusion industry |
||

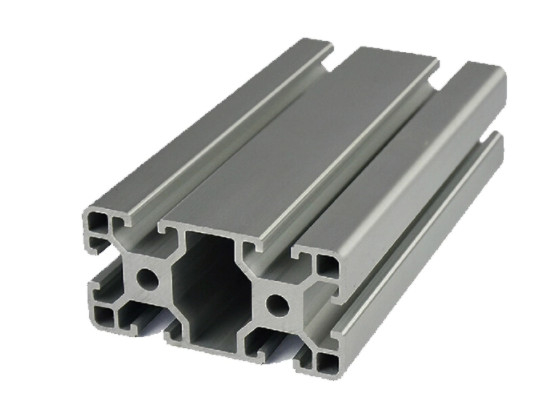

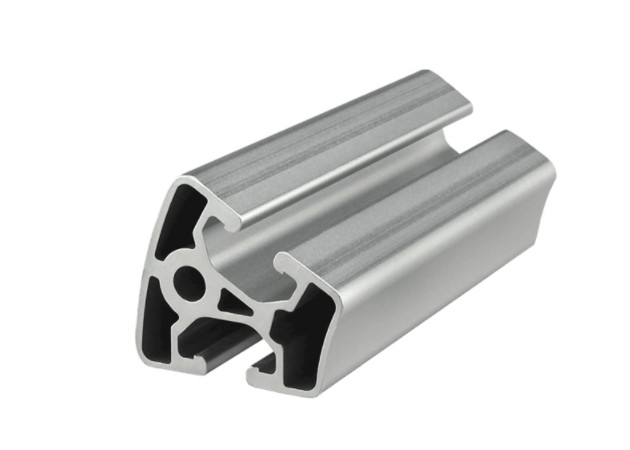

T - Slot Industrial Aluminum Extrusion Profile / Aluminum Profile For Assembly Line
T-slot Industrial Aluminium profile are mainly producted by Alloy 6061-T5/T6 or 6063-T5/T6, it is widely used for aluminium display and exhibitionshelf, aluminium coveyors system, work bench, machine frames and stairway - platform - system, transportation, construction and so on.
| Materials | Aluminum 6061 6063 |
| Porcessing | Extrusion , CNC machining, Stamping, punching, bending, welding, threading, grinding, milling, machining, lathe, assembling etc. |
| Finish | Anodizing, Powder-Coating, Electrophoresis,Wooden Transfer etc |
| Industrial | Metal stamping parts/punching parts/pressing parts |
| Certificate | ISO 9001: 2008, SGS, Rohs. |
| Inspection | 100% inspection before shipping |
| Package | Standard suitable package / Pallet or container / As per customized specifications |
| Delivery | 10-30days depend on different product |
| Payment | T/T , L/C |
| Note | The products shown here is only to present the scope of our business activities. We can manufacture manufacture custom parts according to your drawings or samples. |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
