Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |
| Highlight: | 6063 aluminium extrusion heatsink,custom industrial computer aluminium extrusion heatsink,6063 aluminum heatsink extrusion profiles |
||

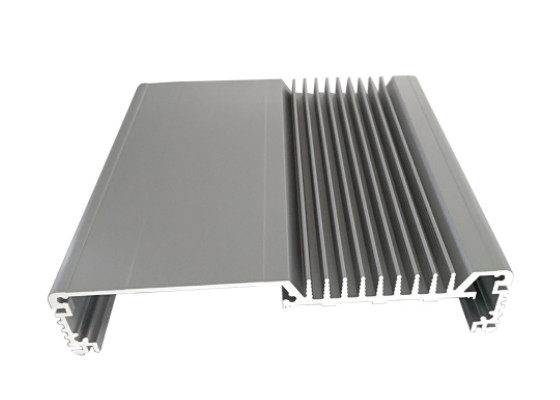

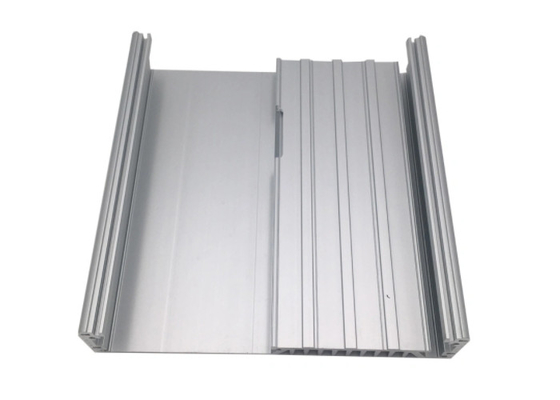

Custom Aluminum Heatsink Extrusion Profiles / Industrial Computer Heat Sink
Our company MetalPlus is dedicated to the development, manufacture and marketing of high-performance aluminum extrusion profiles . We pride ourselves on rapid sampling, flexible production methodologies and world-class technical support to our customers. We have significant experience in the thermal management arena and look forward to working with our customers, wherever they are in the world, and however demanding their needs are.
1. Material :Aluminum 6063,6061,6060,6005,6082 etc.
2. Temper : T5 or T6
3. Finish: Mill finish, anodizing,powder coating, electrophoresis, wooden transfer or pvdf/carbon-flouride coated, polishing,brushing,sand blasting
4. Various colors: Silver,bronze,black,gold,blue,grey,champagne,bright,etc.
5. Machining: Cutting,punching,drilling,tapping,milling,bending,welding,CNC etc.
6. Various in styles and sizes:
A). Aluminum alloy bars: Normal material such as 6063,6005,6061,6060, special materials such as 6082 etc.
B). Aluminum profiles:
---General aluminum profiles (various shapes of pipes/tubes, angles, T or U shapes etc.)
--- Industrial aluminum profiles ( TV frames, Heat sink profiles, Furniture,Industrial Fan , Ladder, Guide Rail, Shower Room, Solar Module Frame, Motor Shell, Pipeline Integration etc.)
--- Construction aluminum profiles ( Aluminum doors&windows,Casement Windows, Sliding Windows, Curtain Wall Frame etc.)
7. Certification: ISO9001,SGS,ROHS,TUV
8. Strong technical development ability, can provide high intensity and high ductility aluminum profiles, to meet customers' different requirements.
9. OEM service available, customized design available
Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1, With strong professional design team , we can arrange the designs according to your requirement ,and we can produce the die as your special request .
2, We can offer you the high quality products & reasonable price
3, We provide you a good after-sell service
4, Prompt delivery, sample order is welcome.
