| Product Name: | Industrial Aluminium Profile | Alloy: | 6063,6061 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 |
| Highlight: | 6063 t5 industrial aluminum profile,cylinder shell industrial aluminum profile,industrial aluminium profile 6063 t5 |
||

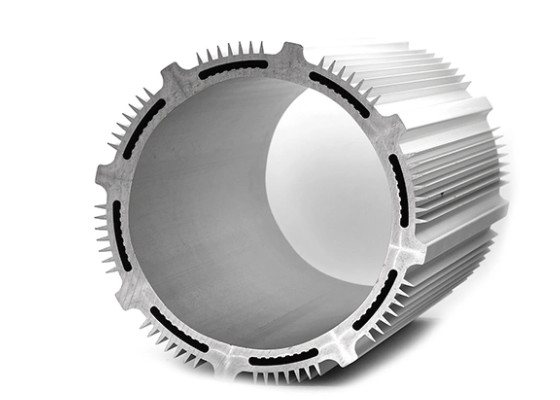

6063- T5 Silvery , Black Industrial Aluminium Profile / Cylinder Shell
Our company MetalPlus was established in 1997, which is a high-tech company specialized in manufacturing pneumatic cylinders profiles .
We have more than 600 employees and 30% of them are professionals. We has quality control Dept. and R&D Dept. With the strong research strength and rich production experience.
We have passed the ISO9001:2000 international quality system certification advance in the aluminum extrusion field , use computer network management system,first-class employee training center. MetalPlus are moving to the direction of modernization, internationalization and group.
Description:
|
Item |
Aluminum extruded cylinder shell with CNC machining |
|
Material |
Alloy 6063, 6061 ,6005,6060 or according to customer’ s choice |
|
Temper |
T4, T5, T6,T66 |
|
Surface |
Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc. |
|
MOQ |
1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container. |
|
Usage |
Widely used in the instruction and electronic areas |
|
Machining |
High-precision machining available upon request (lathe/milling/CNC machining/polishing/punching/drilling/taping, etc.) |
|
Moulding |
1. Using our moulds, free; 2. Using customer’ s drawing, opening mould fee need to be paid . |
|
Certificate |
ISO14001:2004, ISO9001:2000 |
|
FOB Port |
Shanghai, etc. |
Advantages of choosing Hentec Alu.:
--1--. Quality Guaranteed : One-stop service, tool design, smelting, extruding, machining, surface treatment, packing as well as assembling can be all finished in house.
--2--. Reliable Quality : Our company is ISO9001: 2008 certified
--3--. High Efficiency: Most competitive price with short lead time for tooling design and the parts
--4--. Efficient communication (48-hour quotes price/lead time/MOQ)
--5--. Compliant test with RoHS
Quotation is usually based on:
1) Detail drawings;
2) Buyers' samples;
3) Specification, pictures of the products.
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
