Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |
| Highlight: | 6063 Anodized Extruded Heat Sink Profiles,T66 Temper Extruded Heat Sink Profiles,Electrophoresis Alloy Extrusion Profiles |
||

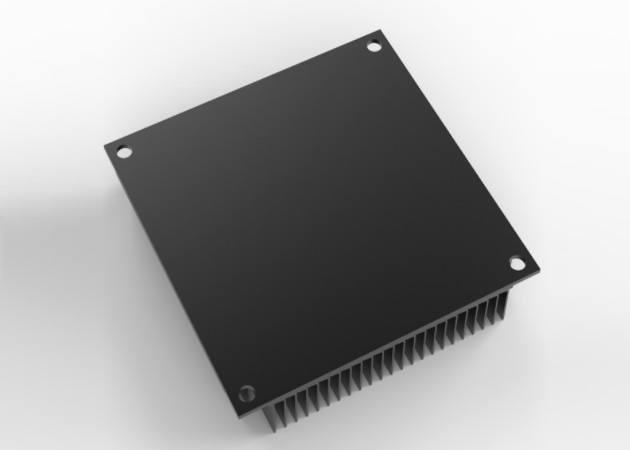

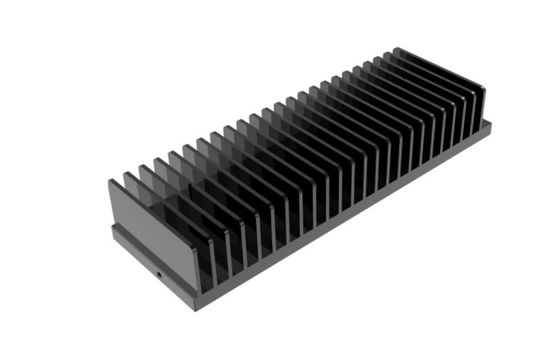

6063 Black Anodized Extruded Heat Sink Profiles For Audio Equipment
Description :
| Name | Aluminum Heat Sink |
| Material | According to customers demand |
| Temper | T4 ,T5 ,T6 ,T66 |
| Surface | Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc. |
| Profile type | Industry Aluminum profile used in cars, trains machinery ,trailers ,electronics, medical and other industrial filed |
| Machining | Cutting, punching, drilling, tapping, milling, bending, welding, CNC etc |
| Finish | Mill finish, anodizing, powder coating, electrophoresis, wooden transfer or pvdf/carbon-flouride coated, polishing, brushing, sand blasting |
| OEM service available | customized design available |
| Certificate | ISO9001 |
| Payment Terms | T/T , L/C |
| Packing | Protective film + Compound paper/Shrink film |
Applications:
Aluminum heat sink is widely used on Machines ,lED light , Audio Equipment , CPU , Inverter ...
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1. Compared with other common metals, aluminum profiles have low density and light weight.
2.With strong crossion resistance , strong plasticity and good productivity.
3. Aluminum profiles have good casting properties, can be processed into aluminum profiles of different shapes.
4. Chemical properties are stable, non-magnetic, can be recycled.
5. The coefficient of elasticity is small, the collision friction does not spark, the best performance in the automotive process.
6. It has good thermal conductivity and electrical conductivity, outstanding performance in short-distance transmission.
7. The aluminum profile has no metal pollution, no toxicity, and there is no volatile metal in the surface oxide layer.
