Product Details:
Payment & Shipping Terms:
|
| Highlight: | modular aluminium profile system,custom aluminum extrusions |
||
|---|---|---|---|

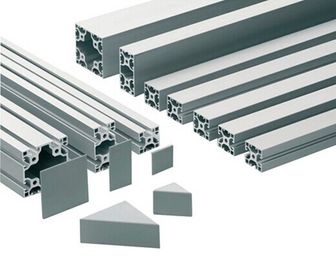

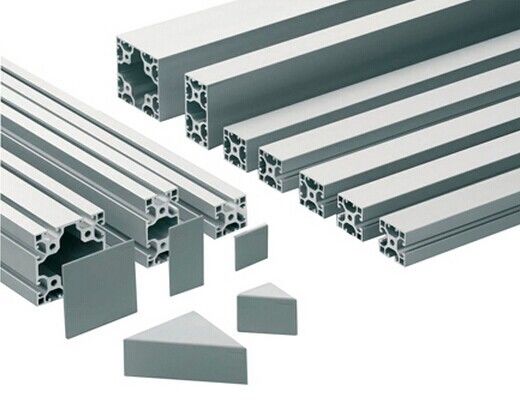

6063-T5 Anodized Industrial Aluminium Profile Assembly line
1. Alloy :6063,6061,6005 or according to customer’ s choice
2. Temper: T4, T5, T6 ,T66
3. Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4. Deep process: Milling, Drilling, Bending,Cutting.
5. Application:
trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators
6. Color:clear, satin, bronze, black, golden, silver, other multicolor
Description:
|
Item |
6063-T5 Anodized Industrial Aluminium Profile , Assembly line |
|
Material |
Alloy 6063, 6061 or according to customer’ s choice |
|
Temper |
T3, T4, T5, T6 |
|
Surface |
Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc. |
|
MOQ |
1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container. |
|
Usage |
Widely used in the instruction and electronic areas |
|
Machining |
High-precision machining available upon request (lathe/milling/CNC machining/polishing/punching/drilling/taping, etc.) |
|
Moulding |
1. Using our moulds, free; 2. Using customer’ s drawing, opening mould fee need to be paid . |
|
Certificate |
ISO14001:2004, ISO9001:2000 |
|
FOB Port |
Shanghai, etc. |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
