Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063 ,6005,6060 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated，Drawbench,Steel Polished |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T5, T6 |
| Highlight: | T Slot Extruded Aluminium Profile,6060 Extruded Aluminium Profile,OEM 6063 Aluminium Profile |
||

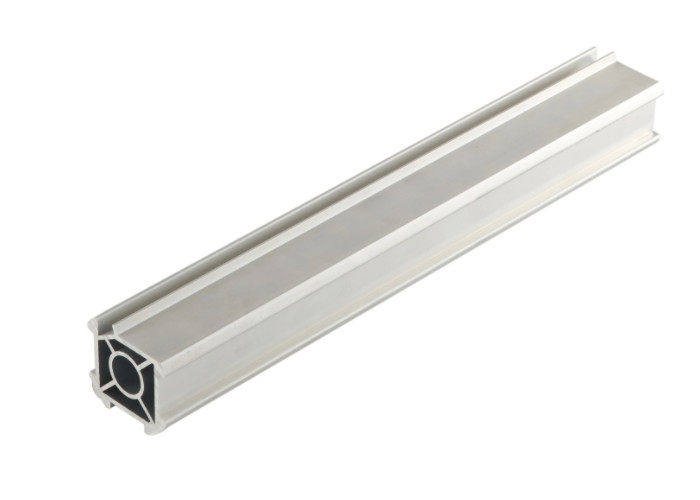

T-Slot Aluminium Extrusion Profile Extruded Aluminum For Industry
Cut the length to the length you want. It can be used to make frame, worktable, etc. It can be moved at will. If you can provide us a drawing of the frame, we can check whether it can be made.
Features:
1. The 2020 Extrusions are perfect for DIY, such as building the 3d printers and so on.
2. These high quality 4040 Aluminium Extrusions form a perfect solution for custom machine frames, workstations, prototyping, guarding and many more purposes.
3. The extrusion are a great framing material as they are adjustable and can hold nuts on all 4 Grooved Surface sides.
Product Specification
Features: |
High-corrosion resistance Easy installation Wide application Strong structure Prompt delivery OEM and ODM services are provided Well packaged High-durability Stand up extreme weather Avoid welding and cut on the spot |
Solar mounts from MetalPlus : |
Delivered on time and on budget |
Engineered to provide clean, affordable electricity overdecades of silent, reliable operating |
|
Professionally warranted and managed to keep your investmentfinely tuned |
|
Installed on the ground or roof-mounted all over the World |
Applications:
Our aluminum profile has a wide range of application, like Radiator, Assembly line, Frame system, Machine Guards, Stairs & Platforms, Display rack, Automotive, Motor aluminium housing, Bridge system, Vessel, Elevator, etc.
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
