Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Temper: | T5 , T6 |
|---|---|---|---|
| Surface: | Powder Painted / Anodize | Name: | Anodized Aluminum Profile |
| Highlight: | Anodized Aluminum Profile Deep Processing,T6 Anodized Aluminum Profile,6082 Anodized Aluminum Profile |
||

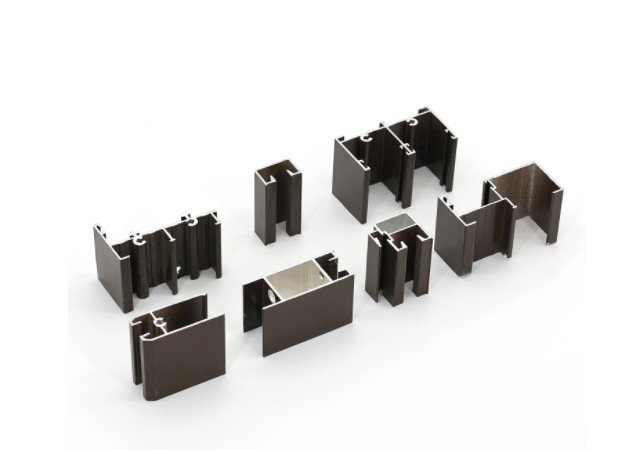

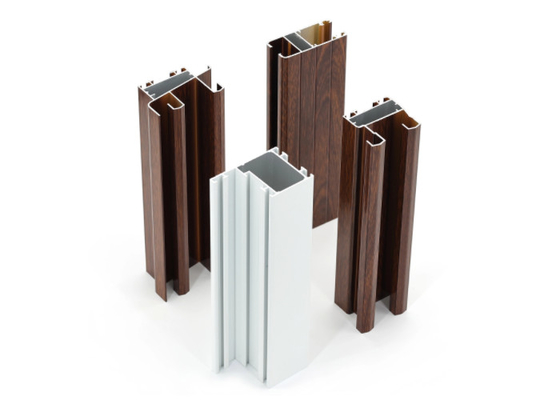

Customized Extruded Aluminum Profiles Using In Exhibition , Deep Processing
Alloy&Temper:6063 ,6061 ,6005, 6060 ,6082 ...T4/T5/T6/T66
Certificate:ISO9001:2008
Surface finish:Mill finish,Anodizing,powder coated,Wood grain,Polished,sand blasting
Anodizing:Silver/champagne/bronze/black. Anodizing thickness of 10um
powder coating:Many color choices, Powder coating thickness 60um-120um.
Wood grain:Heat transfer printing paper for making different textures of wood grain.
OEM service:Die making as per customers' drawing, scan the cross section as per delivery samples.
Packing Details:1. Protective Film + Heat Shrink Film
2. Kraft paper
3. EPE Foam for Each Piece + Heat Shrink Film
Production Lines
| Production Lines | Name | Qty | Max Product Length |
| Extruding Lines | 600 ton extruder | 5 | |
| 800 ton extruder | 2 | ||
| 1100 ton extruder | 1 | ||
| 1250 ton extruder | 1 | ||
| 1800 ton extruder | 1 | ||
| 4500 ton extruder | 2 | ||
| Surface Treatment Lines | Anodizing | 1 | ≤6.5 m |
| Powder coating | 2 | ≤13 m | |
| Electrophoresis | 1 | ≤6.5 m | |
| Deep Processing Lines | Cutting machine | 3 | |
| Punching machine | 5 | ||
| Milling machine | 3 | ||
| CNC machine | 2 | ||
| Polishing machine | 1 | ||
| Tapping machine | 5 | ||
| Riveting machine | 1 |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
- WHO ARE WE
1. Top Aluminium profile manufacturer for 20 years in China.
2. Diverse Products used in the fields of construction, industry and deep-processing.
- WHY CHOOSE US
1. Quality Control is put in the core position of our production.
2. Customized Production shows our capability in product design and process control.
3. Perfect Customer Services include careful packaging, quick delivery and good
after-sale service.
- WHERE DO WE EXPORT
1. North America: USA, Canada.
2. South America: Brazil, Argentina, Chile, etc.
3. Europe: Spain, France, Germany, The Netherlands, Russia, etc.
4. Aisa and Oceania: Vietnam, Thailand, India, Australia, etc.
5. Total 53 countries.
