Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy | Temper: | T5 / T6 |
|---|---|---|---|
| Alloy: | 6063 / 6061 / 6060 | Surface: | Powder Painted |
| Color: | Customerized | ||
| Highlight: | extruded aluminium profiles,profile aluminum extrusions |
||
Descrition:

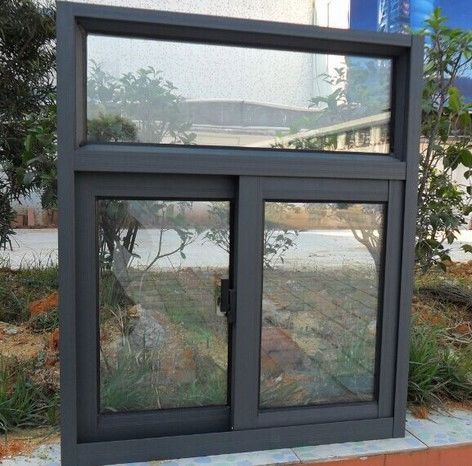

Latest Design Aluminum Extrusion Profiles For Double Glazing Aluminum Sliding Window
Feature:
1. Easy Installent
2. Provide Technical consultation
3. Good service
4. Responsible for every customer
Our main product is:
- Sliding Door
- Folding Door
- French Door
- Aluminum Window
- Casement Window
- Top Hung Window
- Sliding Window
- Tilt turn Window
- Louver Window
- Curtain Wall
Material :6063 6060 6061 6005 6082 T4 T5 T6 T66
Surface : Mill Finished, Powder Coating ,Chemical and Mechanical Polishing, Sand Blasting , Satin, Bronze, Black, Golden, Silver, Anodizing, Electrophoresis
MOQ :500 kgs . Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
Packing :
EPE, wrapped with waterproof paper ,pallet ,wooden case .
Sample delivery time : Two weeks (one week for mould +one week making sample)
Maximum extruder machine : 4000 tons;
Minimum extruder machine : 500 tons
Order,payment,terms,shipment
1, Minimum order: 500kg per trial order 1 piece of sample free of charge provided by approval and kept for future mass production.
2, Sample Lead Time: 25 working days(15 days for making the tool and 10 days making the samples. Before sending the samples to customer, samples should pass strict test in our lab. )Production Lead time: it depends on customers' order quantity ( 30 working days after deposit).
3, Payment: (Can negotiate with customers, our usual practices are as follow)
4, Tooling:100% prepaid by T/T.
5, Parts:30% upon order confirmation and balance before delivery by T/T
Applications:
Aluminum profile used for making aluminum door .There are many colors can be selected for surface treatment .The strength can be increased by higher wall thickness . It is possible to produce according to customized design .
Specifications:
1. Primary Technical Data
1) Chemical composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2) Mechanical property
Alloy | Temper | Tensile strength | Yield strength | Elongation |
6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Competitive Advantage:
1. Offer OEM service.
2. Surface Treatment: Mill finished, wooden finished, Anodized, Powder coated, Printed, Polished.
3. Our Extrusion Machine are available to produce the thinnest of aluminium profile is 0.3 mm.
4. Color Choice: any color you want for powder coated, but for anodized we have five normal color for your choice: Matte silver, Silver, Bronze, Dark, Champagne.
5. Stable delivery time.
