Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy | Temper: | T5 / T6 |
|---|---|---|---|
| Alloy: | 6063 / 6061 / 6060 | Surface: | Powder Painted |
| Color: | Customerized | ||
| Highlight: | extruded aluminium profiles,profile aluminum extrusions |
||

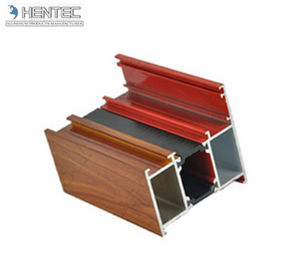

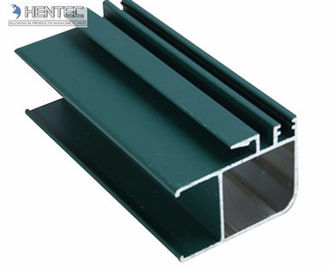

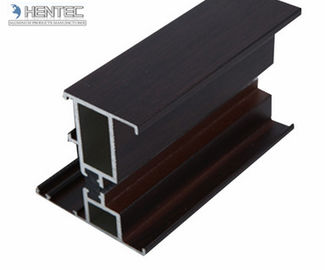

High Quality Aluminium Window Profiles , Deep - Processing Aluminum Window / Door Extrusions
Material :6063
Surface : Mill Finished, Powder Coating ,Chemical and Mechanical Polishing, Sand Blasting , Satin, Bronze, Black, Golden, Silver, Anodizing, Electrophoresis
MOQ :10 sets .
Packing : EPE, wrapped with waterproof paper ,pallet ,wooden case .
Sample delivery time : Two weeks
Specifiaction of High Quality Aluminum Profile:
| Description | aluminum profile windows and door |
| Material Thickness(t) | t=1.0 / 1.2 / 1.4 |
| Material | Aluminum Alloy 6063, 6061 |
| Annealing Treatment | T5,T6 |
| Color | Green, Grey, Black, White, (RAL series)etc. |
| Surface Treatment | |
| Shape | Square, Round, Flat, Oval, and according to customer's drawing. |
| Length | Normal length=6m or in customer's order |
| Usage | |
| Package | 1. Pearl cotton foam for each aluminum profile ; |
| Advantages/Features | Providing colorful products with various mechanical |
Applications:
Aluminum profile used for making aluminum door .There are many colors can be selected for surface treatment .The strength can be increased by higher wall thickness . It is possible to produce according to customized design .
Specifications:
1. Primary Technical Data
1) Chemical composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2) Mechanical property
Alloy | Temper | Tensile strength | Yield strength | Elongation |
6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Competitive Advantage:
1. Top Aluminium profile manufacturer for more than 10 years in China.
2. Diverse Products used in the fields of construction, industry and deep-processing.
3. Quality Control is put in the core position of our production.
4. Customized Production shows our capability in product design and process control.
5. Perfect Customer Services include careful packaging, quick delivery and good
after-sale service.
