| Material: | Aluminum | Color: | Blue |
|---|---|---|---|
| Surface: | Powder Painted | Logal Printing: | OEM |
| Type: | Box | Waterproof: | Waterproof |
| Highlight: | OEM extruded aluminum enclosure box,OEM aluminum extrusion enclosure,6005 extruded aluminum enclosure box |
||

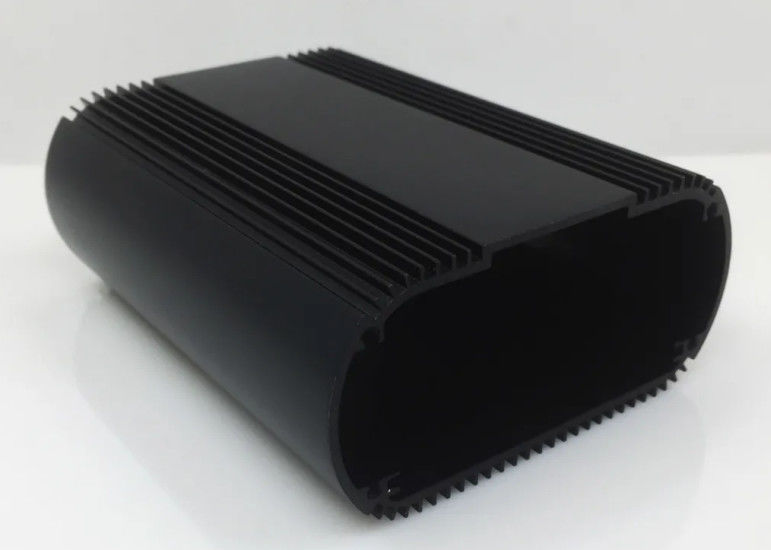

Extruded Aluminum Enclosure / Aluminum Audio Amplifier Housing Shell
Hentec Industry Co.,Ltd ,established in 2005,locates in Jiangyin " China Aluminum Industrial City". over past 17 years, professional manufacturing of aluminum enclosure in China.
Advantages:
1. Professional research and design team (25 persons), all necessary equipment.
2.Good heat dissipation and excellent electromagnetic shielding performance .
3. Strict quality control in each process and finish product quality control.
4. Comprehensive after-sale service, quick responses for daily communication
Description:
1. Various sections for the industrial application--heat radiators, flow line, elevators, textile industry, solar energy, vehicle lamps, medical treatment, shipbuilding industry, etc
2. Raw materials vary from pure aluminum to alloy duralumin,
3. Material Type: 6063A, 6063, 6061,6060,6005, etc;
4. Temper : T4/T5/T6
5. Surface Treatment: Anodized, Powder Coating, Electrophoresis, Wooden-pattern transfer, Thermal-break, Sandblasting, mechanical polishing, etc;
6. Color: Any color as per customer demand;
7. Packing: with foam and film in bales.
Surface treatment
| Surface treatment | Mill-finish,Anodized,Powder coated,Electropheresis,Wood grain,Brushed, Polishing |
| Anodized thickness | 8 - 25um |
| Anodized Color | Silver,black,chanpagne,bronze,gold or customized |
| Electropheresis Color | Silver,black,chanpagne,bronze,gold or customized |
| Powder coated Color | All color by RAL ,or customer's color sample |
| Powder coated thickness | 60- 120um |
| Wood grain | customized |
| Guarantee | surface Brightly can be stable for 10 - 20years |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
